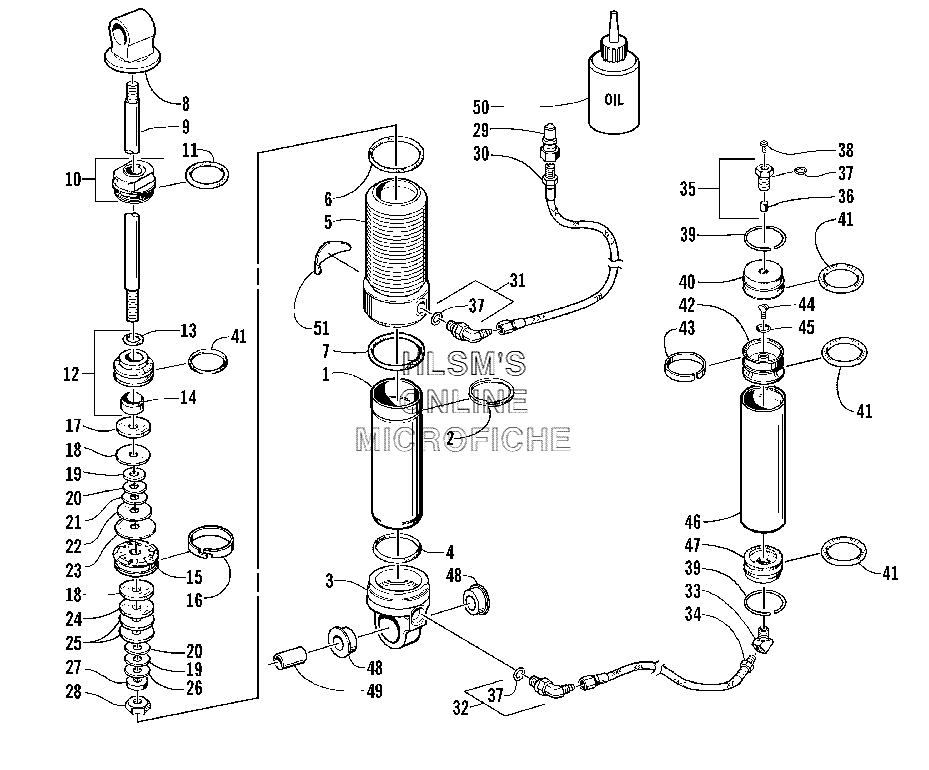

REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE) для Arctic Cat MOUNTAIN CAT 800 LE (GREEN) - 2001 года выпуска
-
№АртикулНазвание
-
-0704-531 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
-0637-101 REBUILD KITREBUILD KIT
-
11604-546 BODY, SHOCKBODY, SHOCK
-
20603-911 RING, RETAINING, SPIRALRING, RETAINING, SPIRAL
-
31604-524 END CAP, SHOCKEND CAP, SHOCK
-
41604-280 O-RINGO-RING
-
51604-517 ADJUSTER SLEEVE, EASY ADJUSTADJUSTER SLEEVE, EASY ADJUST
-
61604-528 O-RING, ADJUSTER (BOTTOM)O-RING, ADJUSTER (BOTTOM)
-
71604-529 O-RING, ADJUSTER (TOP)O-RING, ADJUSTER (TOP)
-
81604-796 EYELET, SHOCKEYELET, SHOCK
-
91604-545 ROD, SHOCKROD, SHOCK
-
100704-386 END CAP, SHOCK (INC. 11)END CAP, SHOCK (INC. 11)
-
111604-271 O-RINGO-RING
-
120704-476 PISTON, SEPARATOR, ASSY (INC. 13, 14 AND ONE NO. 41)PISTON, SEPARATOR, ASSY (INC. 13, 14 AND ONE NO. 41)
-
131604-527 O-RING (INNER)O-RING (INNER)
-
150603-952 PISTON, 0.059 IN., ORIFICEPISTON, 0.059 IN., ORIFICE
-
161604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
171604-272 WASHER, TOP OUTWASHER, TOP OUT
-
181603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
191603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
201603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
211603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
221603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
231603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
241603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
251603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
261603-045 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
271604-273 WASHER, BACKUPWASHER, BACKUP
-
280623-696 NUT, LOCKNUT, LOCK
-
291604-536 COUPLERCOUPLER
-
301604-530 HOSE, ADJUSTER/SHOCK, 30 IN.HOSE, ADJUSTER/SHOCK, 30 IN.
-
311604-552 FITTING, ELBOW (INC. ONE NO. 37)FITTING, ELBOW (INC. ONE NO. 37)
-
321604-533 ELBOW, FLARE TUBE (INC. ONE NO. 37)ELBOW, FLARE TUBE (INC. ONE NO. 37)
-
331604-534 ELBOW, FLARE TUBE, 45°ELBOW, FLARE TUBE, 45°
-
341604-532 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
350704-383 VALVE, PRESSURE, ASSY (INC. 36 AND ONE NO. 37)VALVE, PRESSURE, ASSY (INC. 36 AND ONE NO. 37)
-
371604-284 O-RING, PRESSURE VALVEO-RING, PRESSURE VALVE
-
380624-433 SCREW, MACHINESCREW, MACHINE
-
391604-525 RETAINER, WIRERETAINER, WIRE
-
401604-520 END CAP, RESERVOIR (VALVE SIDE)END CAP, RESERVOIR (VALVE SIDE)
-
411604-277 O-RINGO-RING
-
421604-276 PISTON, INTERNAL FLOATINGPISTON, INTERNAL FLOATING
-
431604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
440623-697 SCREW, RELIEFSCREW, RELIEF
-
451604-279 O-RING, RELIEF SCREWO-RING, RELIEF SCREW
-
461604-554 BODY, RESERVOIRBODY, RESERVOIR
-
471604-535 END CAP, RESERVOIREND CAP, RESERVOIR
-
481604-287 BUSHING, SHOCKBUSHING, SHOCK
-
491604-289 SLEEVE, EYELETSLEEVE, EYELET
-
501639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
513611-007 DECAL, WARNINGDECAL, WARNING
