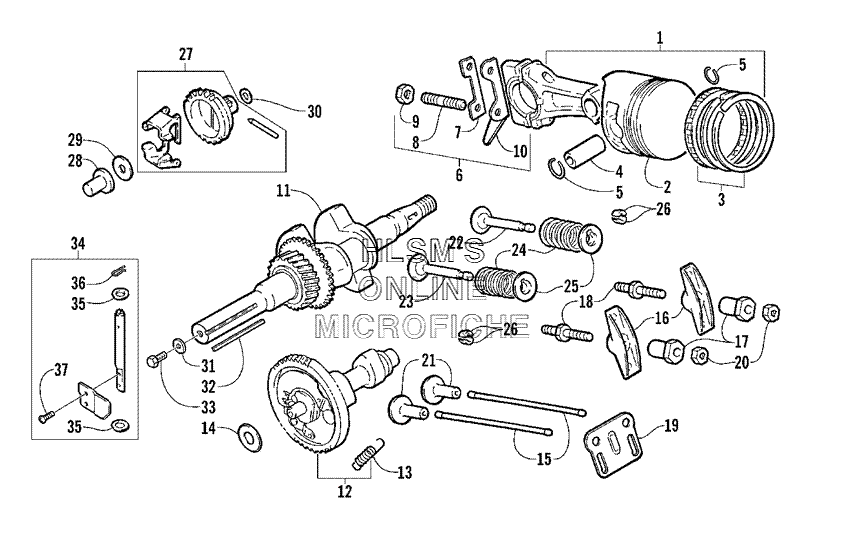

PISTON AND CRANKSHAFT для Arctic Cat Z 120 - 2001 года выпуска
-
№АртикулНазвание
-
10694-026 PISTON ASSEMBLY (INC 2,3, AND 5)PISTON ASSEMBLY (INC 2,3, AND 5)
-
20691-398 PISTONPISTON
-
20691-569 PISTON, OVERSIZED (0.25MM)PISTON, OVERSIZED (0.25MM)
-
20691-570 PISTON, OVERSIZED (0.50MM)PISTON, OVERSIZED (0.50MM)
-
30691-399 RING, PISTON - SETRING, PISTON - SET
-
30691-571 RING, PISTON - SET - OVERSIZED (0.25MM)RING, PISTON - SET - OVERSIZED (0.25MM)
-
30691-572 RING, PISTON - SET - OVERSIZED (0.50MM)RING, PISTON - SET - OVERSIZED (0.50MM)
-
40691-400 PIN, PISTONPIN, PISTON
-
50691-378 CIRCLIPCIRCLIP
-
60691-936 ROD, CONNECTING - ASSEMBLY (INC 7-10)ROD, CONNECTING - ASSEMBLY (INC 7-10)
-
70691-403 PLATE, LOCKPLATE, LOCK
-
80691-366 BOLT, STUDBOLT, STUD
-
93004-851 NUTNUT
-
100691-402 PLATE, SPLASHPLATE, SPLASH
-
110694-027 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
120691-922 CAMSHAFT (INC 13)CAMSHAFT (INC 13)
-
130691-380 SPRINGSPRING
-
140691-840 WASHERWASHER
-
150691-407 ROD, PUSHROD, PUSH
-
160691-412 ARM, ROCKERARM, ROCKER
-
170691-413 PIVOTPIVOT
-
180691-414 BOLT, STUD - PIVOTBOLT, STUD - PIVOT
-
190691-415 GUIDE, PUSH RODGUIDE, PUSH ROD
-
200691-016 NUTNUT
-
210691-406 TAPPETTAPPET
-
220694-008 VALVE, INTAKEVALVE, INTAKE
-
230694-009 VALVE, EXHAUSTVALVE, EXHAUST
-
240691-410 SPRING, VALVESPRING, VALVE
-
250693-313 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
260693-281 COTTER, VALVECOTTER, VALVE
-
270693-698 GEAR, GOVERNOR - SETGEAR, GOVERNOR - SET
-
280691-842 SLIDER, GOVERNORSLIDER, GOVERNOR
-
290691-843 WASHERWASHER
-
303004-652 WASHERWASHER
-
310694-024 WASHERWASHER
-
320694-006 KEY, CRANKSHAFTKEY, CRANKSHAFT
-
330694-007 BOLT, CRANKSHAFTBOLT, CRANKSHAFT
-
340693-258 SHAFT, THROTTLE CONTROL - SET (INC 35-37)SHAFT, THROTTLE CONTROL - SET (INC 35-37)
-
350693-252 WASHERWASHER
-
360691-848 PIN, SNAPPIN, SNAP
-
373004-563 SCREWSCREW
