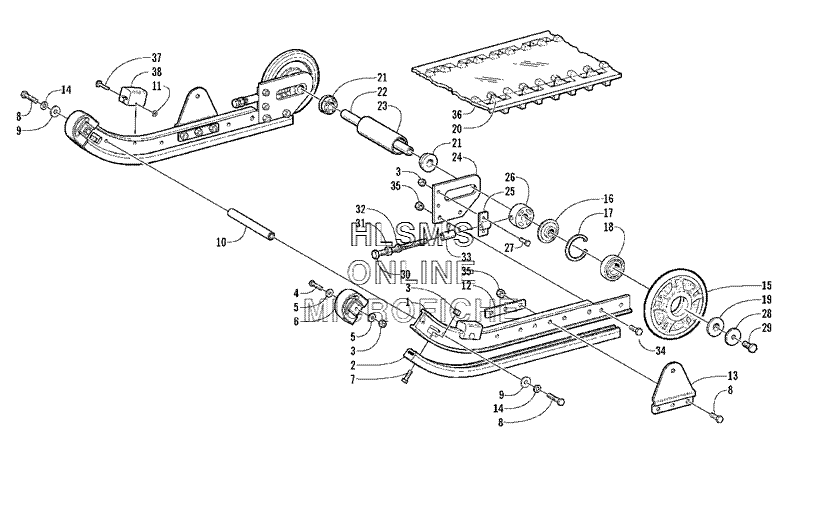

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat Z 120 - 2001 года выпуска
-
№АртикулНазвание
-
-7995-505 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
11604-705 RAIL, FORMEDRAIL, FORMED
-
21604-568 WEARSTRIP, SLIDE RAIL - BLACKWEARSTRIP, SLIDE RAIL - BLACK
-
38040-366 NUT, LOCKNUT, LOCK
-
48002-044 SCREW, CAPSCREW, CAP
-
58050-217 WASHERWASHER
-
60604-231 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
88002-131 SCREW, CAPSCREW, CAP
-
98050-247 WASHERWASHER
-
101604-566 AXLE, CROSS-BRACEAXLE, CROSS-BRACE
-
110423-090 NUT, PUSHNUT, PUSH
-
121604-727 PLATE, BACKINGPLATE, BACKING
-
131604-716 BRACKET, SUPPORT - ARMBRACKET, SUPPORT - ARM
-
148051-247 WASHER, LOCKWASHER, LOCK
-
151604-691 WHEEL, IDLER - REAR (INC 16-19)WHEEL, IDLER - REAR (INC 16-19)
-
161604-772 INSERT, IDLER WHEEL - INNERINSERT, IDLER WHEEL - INNER
-
170123-798 RING, RETAININGRING, RETAINING
-
180107-598 BEARINGBEARING
-
191604-773 INSERT, IDLER WHEEL - OUTERINSERT, IDLER WHEEL - OUTER
-
201602-079 CLIP, GUIDECLIP, GUIDE
-
210604-968 BUSHING, SPACER - REAR IDLER WHEELBUSHING, SPACER - REAR IDLER WHEEL
-
221604-562 AXLE, IDLER WHEEL - REARAXLE, IDLER WHEEL - REAR
-
231604-563 SPACER, IDLER WHEEL - REARSPACER, IDLER WHEEL - REAR
-
241604-661 HOUSING, REAR AXLEHOUSING, REAR AXLE
-
250604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
260604-165 BUSHING, REAR IDLER WHEEL - ADJUSTMENTBUSHING, REAR IDLER WHEEL - ADJUSTMENT
-
278002-041 SCREW, CAPSCREW, CAP
-
280123-570 WASHERWASHER
-
298012-222 SCREW, CAPSCREW, CAP
-
300124-310 SCREW, CAPSCREW, CAP
-
318042-486 NUTNUT
-
328051-277 WASHER, LOCKWASHER, LOCK
-
330604-298 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
348002-132 SCREW, CAPSCREW, CAP
-
358040-426 NUT, LOCKNUT, LOCK
-
361602-015 TRACK ASSEMBLY (INC 20)TRACK ASSEMBLY (INC 20)
-
370123-767 RIVET, SOLIDRIVET, SOLID
-
380104-631 PADPAD
