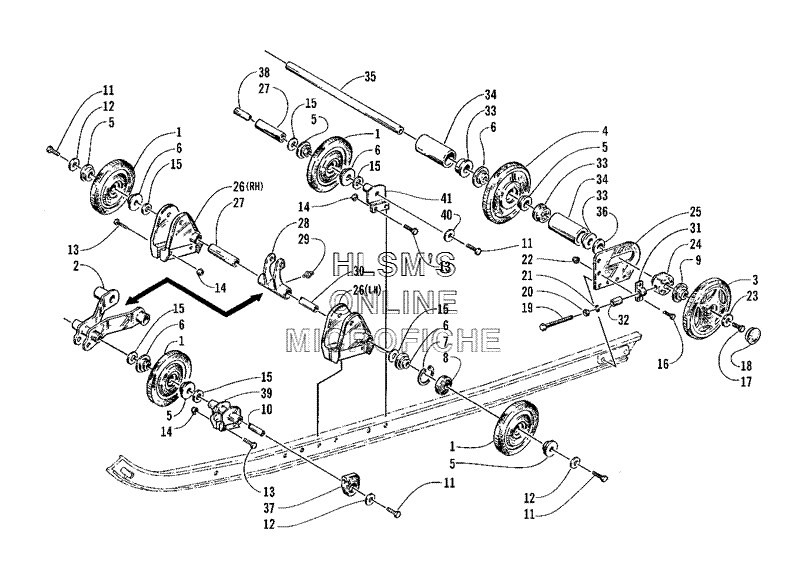

REAR SUSPENSION AXLE ASSEMBLY для Arctic Cat Z 370 (ES) - 2001 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC 5-8)WHEEL, IDLER (INC 5-8)
-
20704-319 BRACKET, FRONT SHOCKBRACKET, FRONT SHOCK
-
30604-238 WHEEL, IDLER (INC 7-9) (ES)WHEEL, IDLER (INC 7-9) (ES)
-
40604-210 WHEEL, IDLER (INC 5-8)WHEEL, IDLER (INC 5-8)
-
50104-341 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
60104-340 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
-
70123-798 RING, RETAININGRING, RETAINING
-
80107-598 BEARINGBEARING
-
90604-220 INSERT, WHEELINSERT, WHEEL
-
100604-578 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
118012-132 SCREW, CAPSCREW, CAP
-
120123-260 WASHERWASHER
-
138002-131 SCREW, CAPSCREW, CAP
-
148040-426 NUT, LOCKNUT, LOCK
-
150123-439 WASHERWASHER
-
168002-041 SCREW, CAPSCREW, CAP
-
178012-223 SCREW, CAPSCREW, CAP
-
180604-246 CAP, IDLER WHEEL - BLACKCAP, IDLER WHEEL - BLACK
-
190623-123 SCREW, CAPSCREW, CAP
-
208042-486 NUTNUT
-
218051-277 WASHER, LOCKWASHER, LOCK
-
228040-366 NUT, LOCKNUT, LOCK
-
230123-570 WASHERWASHER
-
240604-165 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
251604-153 HOUSING, REAR AXLEHOUSING, REAR AXLE
-
260704-190 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
260704-191 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
270603-105 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
280704-374 PIVOT, SHOCK (INC 29)PIVOT, SHOCK (INC 29)
-
299916-963 FITTING, GREASEFITTING, GREASE
-
300604-576 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
310604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
320604-298 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
330604-968 BUSHING, SPACERBUSHING, SPACER
-
340604-730 SPACER, REAR IDLER WHEELSPACER, REAR IDLER WHEEL
-
350604-208 AXLE, REAR IDLER WHEELAXLE, REAR IDLER WHEEL
-
360623-220 WASHERWASHER
-
370604-403 SLIDE, SPRINGSLIDE, SPRING
-
380604-142 AXLE, INNERAXLE, INNER
-
390704-201 BRACKETBRACKET
-
400623-140 WASHERWASHER
-
410704-196 SUPPORT, IDLER WHEELSUPPORT, IDLER WHEEL
