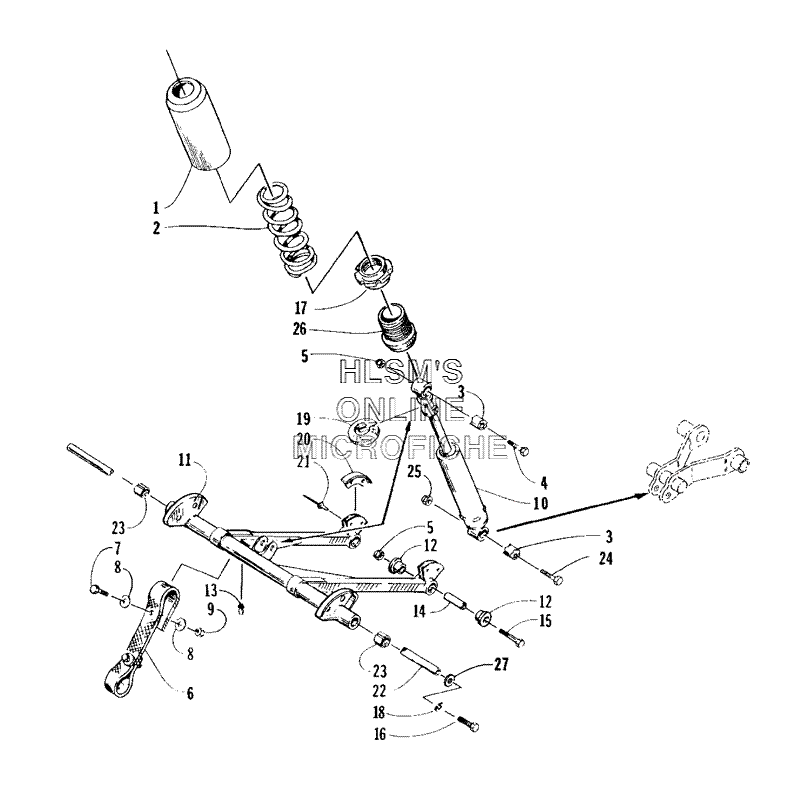

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Z 370 (ES) - 2001 года выпуска
-
№АртикулНазвание
-
10604-590 COVER, COMPRESSION SPRINGCOVER, COMPRESSION SPRING
-
21603-171 SPRING, COMPRESSIONSPRING, COMPRESSION
-
30603-030 AXLE, SERRATEDAXLE, SERRATED
-
48002-227 SCREW, CAPSCREW, CAP
-
58040-486 NUT, LOCKNUT, LOCK
-
61604-131 STRAP, LIMITERSTRAP, LIMITER
-
78002-042 SCREW, CAPSCREW, CAP
-
80623-184 WASHERWASHER
-
98040-366 NUT, LOCKNUT, LOCK
-
101604-101 SHOCK ABSORBER - FRONT ARMSHOCK ABSORBER - FRONT ARM
-
110704-243 ARM, FRONT SUSPENSION (INC 12-13 AND 23)ARM, FRONT SUSPENSION (INC 12-13 AND 23)
-
120104-386 BUSHINGBUSHING
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140104-629 SPACER, FRONT ARMSPACER, FRONT ARM
-
158002-228 SCREW, CAPSCREW, CAP
-
168002-224 SCREW, CAPSCREW, CAP
-
170603-259 NUT, RETAINER - SPRINGNUT, RETAINER - SPRING
-
188051-277 WASHER, LOCKWASHER, LOCK
-
190603-033 RETAINER, SPRINGRETAINER, SPRING
-
200604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
218060-710 RIVETRIVET
-
220114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
230603-083 BEARINGBEARING
-
248002-225 SCREW, CAPSCREW, CAP
-
258041-486 NUT, LOCKNUT, LOCK
-
260603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
270623-044 WASHERWASHER
