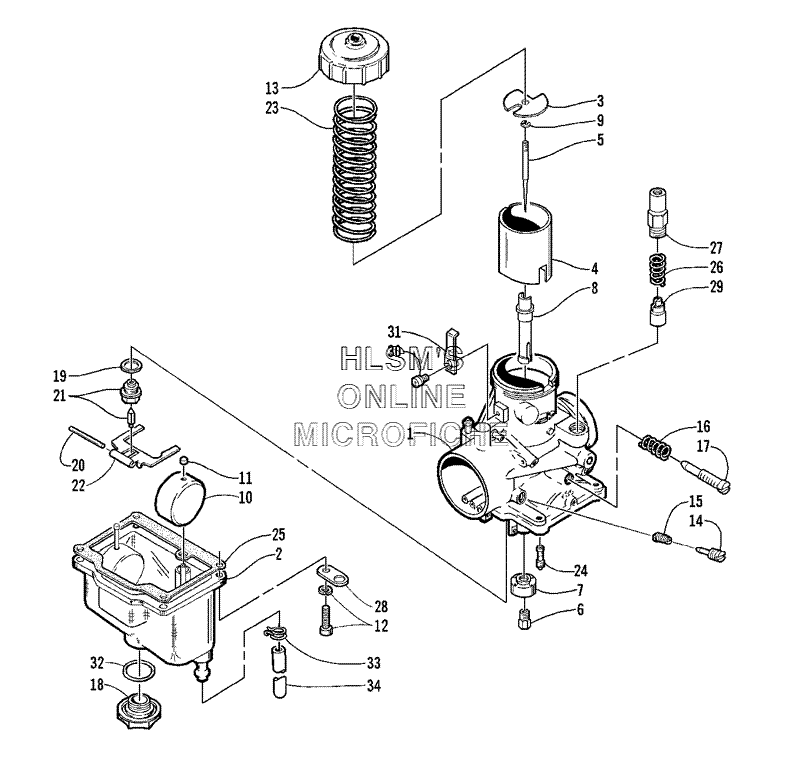

CARBURETOR для Arctic Cat Z 370 - 2001 года выпуска
-
№АртикулНазвание
-
-1670-204 VM32-304 COMPLETE CARBURETORVM32-304 COMPLETE CARBURETOR
-
26505-631 FLOAT CHAMBERFLOAT CHAMBER
-
36505-001 PLATEPLATE
-
46505-246 PISTON VALVE CA 2.5PISTON VALVE CA 2.5
-
56505-215 JET NEEDLE 6DH7-3JET NEEDLE 6DH7-3
-
66505-068 MAIN JET 250MAIN JET 250
-
76505-620 BAFFLE RINGBAFFLE RING
-
86505-247 NEEDLE JET P-6 (159)NEEDLE JET P-6 (159)
-
96505-610 E-CLIPE-CLIP
-
106505-009 FLOATFLOAT
-
116505-010 CAPCAP
-
126505-014 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
136505-018 TOP, MIXING BODYTOP, MIXING BODY
-
146505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
156505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
166505-021 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
176505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
186505-617 PLUG, DRAINPLUG, DRAIN
-
196505-024 WASHERWASHER
-
206505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
216505-160 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
226505-027 ARM, FLOATARM, FLOAT
-
236505-579 SPRING, PISTON VALVESPRING, PISTON VALVE
-
246505-047 PILOT JET 40PILOT JET 40
-
256505-030 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
266505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
276505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
286505-608 PLATE, HOSEPLATE, HOSE
-
296505-035 STARTER PLUNGERSTARTER PLUNGER
-
306505-036 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
316505-037 PLATEPLATE
-
326505-622 O-RINGO-RING
-
330623-652 CLAMP, HOSECLAMP, HOSE
-
340610-279 HOSE, DRAINHOSE, DRAIN
