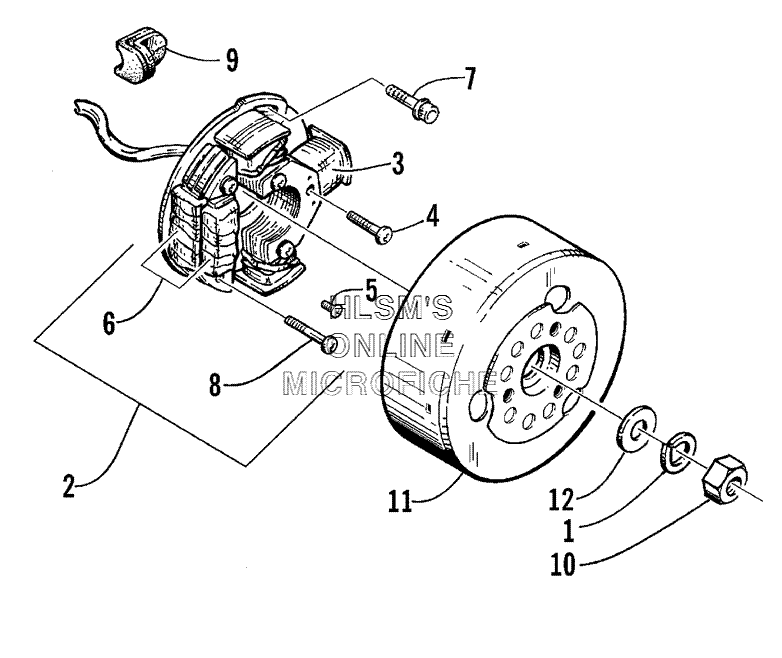

MAGNETO для Arctic Cat Z 370 - 2001 года выпуска
-
№АртикулНазвание
-
13004-345 WASHER, LOCKWASHER, LOCK
-
23005-346 STATOR ASSEMBLY (INC 3-6 AND 8)STATOR ASSEMBLY (INC 3-6 AND 8)
-
33003-013 COIL, LIGHTINGCOIL, LIGHTING
-
43005-535 SCREWSCREW
-
53004-545 SCREWSCREW
-
63005-376 COIL, PRIMARYCOIL, PRIMARY
-
73005-171 BOLTBOLT
-
83004-634 SCREWSCREW
-
93002-585 GROMMETGROMMET
-
100691-370 NUTNUT
-
113005-681 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
123005-175 WASHERWASHER
