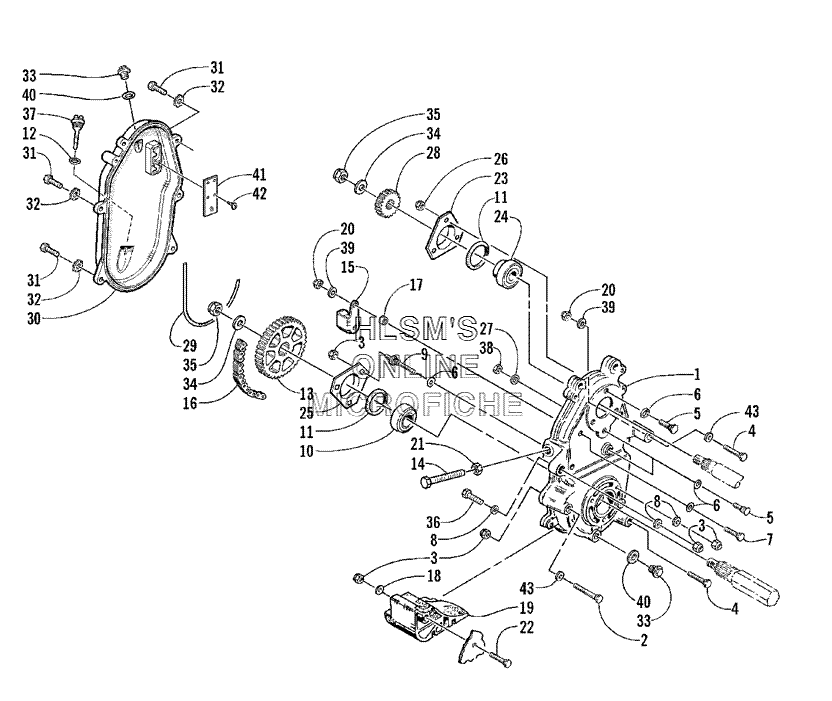

DRIVE/DROPCASE ASSEMBLY для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10702-409 DROPCASE W/STUDSDROPCASE W/STUDS
-
28011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
38040-426 NUT, LOCKNUT, LOCK
-
48011-139 SCREW, CAPSCREW, CAP
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
60607-025 O-RING, STUDO-RING, STUD
-
70623-117 BOLT, RIBBEDBOLT, RIBBED
-
88050-247 WASHERWASHER
-
90623-317 STUDSTUD
-
101602-051 BEARING, 1 IN.BEARING, 1 IN.
-
111670-237 SEAL, O-RINGSEAL, O-RING
-
120670-183 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
131602-087 SPROCKET, 39TSPROCKET, 39T
-
130602-453 SPROCKET, 40T (OVER 5,000 FT ALT)SPROCKET, 40T (OVER 5,000 FT ALT)
-
140602-638 ADJUSTER, CHAINADJUSTER, CHAIN
-
150702-397 ARM, TIGHTENER - ASSEMBLYARM, TIGHTENER - ASSEMBLY
-
160602-968 CHAIN, 70PCHAIN, 70P
-
170602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
188050-242 WASHERWASHER
-
190616-964 GUARD, DROPCASEGUARD, DROPCASE
-
200623-122 NUT, LOCKNUT, LOCK
-
210123-150 NUTNUT
-
228011-137 BOLT, RIBBEDBOLT, RIBBED
-
230602-198 PLATE, FLANGEPLATE, FLANGE
-
241602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
250602-932 PLATE, FLANGEPLATE, FLANGE
-
268041-426 NUT, LOCKNUT, LOCK
-
270623-094 WASHERWASHER
-
281602-150 SPROCKET, 20TSPROCKET, 20T
-
280602-973 SPROCKET, 19T (OVER 5,000 FT ALT)SPROCKET, 19T (OVER 5,000 FT ALT)
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300602-989 COVER, DROPCASECOVER, DROPCASE
-
318002-134 SCREW, CAPSCREW, CAP
-
328053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
330623-293 PLUG, DROPCASEPLUG, DROPCASE
-
340623-231 WASHER, SPRINGWASHER, SPRING
-
350623-465 NUT, LOCKNUT, LOCK
-
368002-135 SCREW, CAPSCREW, CAP
-
370602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
388042-426 NUTNUT
-
398050-217 WASHERWASHER
-
400123-641 WASHER, FIBERWASHER, FIBER
-
411602-152 COVER, OIL VENTCOVER, OIL VENT
-
420623-081 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
438050-252 WASHERWASHER
