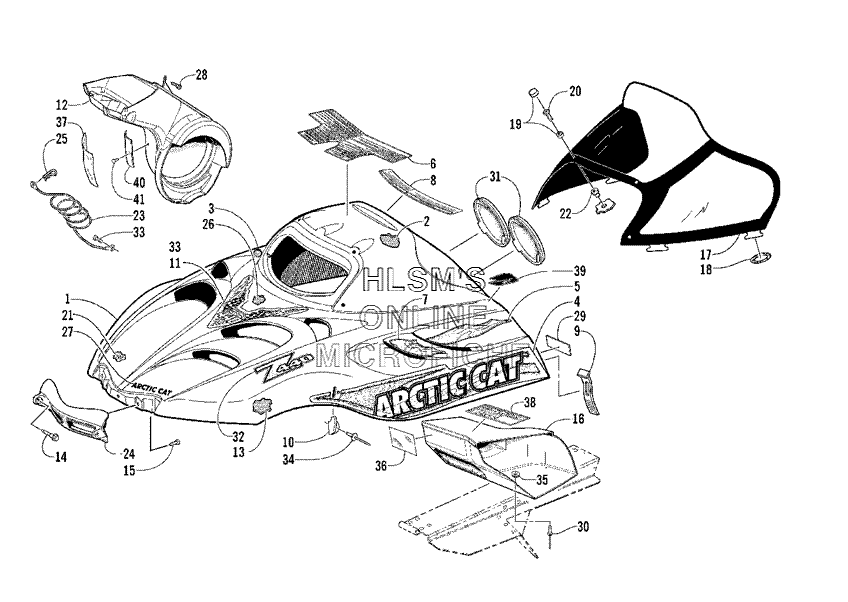

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска
-
№АртикулНазвание
-
11718-012 HOOD W/O DECALSHOOD W/O DECALS
-
11718-010 HOOD W/DECALSHOOD W/DECALS
-
20717-148 FOAM, HOOD - RIGHT - UPPERFOAM, HOOD - RIGHT - UPPER
-
20717-149 FOAM, HOOD - LEFT - UPPERFOAM, HOOD - LEFT - UPPER
-
30717-146 FOAM, HOOD - RIGHT - REARFOAM, HOOD - RIGHT - REAR
-
44611-258 DECAL, HOOD - RIGHT - LOWERDECAL, HOOD - RIGHT - LOWER
-
44611-259 DECAL, HOOD - LEFT - LOWERDECAL, HOOD - LEFT - LOWER
-
54611-082 DECAL, HOOD - RIGHT - UPPERDECAL, HOOD - RIGHT - UPPER
-
54611-083 DECAL, HOOD - LEFT - UPPERDECAL, HOOD - LEFT - UPPER
-
63611-485 DECAL, WARNING - HOODDECAL, WARNING - HOOD
-
74611-084 DECAL, HOOD - VENT - FRONT - RIGHTDECAL, HOOD - VENT - FRONT - RIGHT
-
74611-085 DECAL, HOOD - VENT - FRONT - LEFTDECAL, HOOD - VENT - FRONT - LEFT
-
83611-970 DECAL, CAUTION - ENGINE/BATTERY/FUELDECAL, CAUTION - ENGINE/BATTERY/FUEL
-
91606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
101606-441 HOLD-DOWN, HOOD STRAP - LEFTHOLD-DOWN, HOOD STRAP - LEFT
-
102606-096 HOLD-DOWN, HOOD STRAP - RIGHTHOLD-DOWN, HOOD STRAP - RIGHT
-
114611-079 DECAL, HOOD - CENTERDECAL, HOOD - CENTER
-
121606-828 DUCT, AIR - INDUCT, AIR - IN
-
130717-156 FOAM, HOOD CENTER - RIGHTFOAM, HOOD CENTER - RIGHT
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161606-870 DUCT, AIR - OUTDUCT, AIR - OUT
-
171606-996 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD - RIGHTFOIL, HOOD - RIGHT
-
211606-939 FOIL, HOOD - LEFTFOIL, HOOD - LEFT
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
232606-247 CABLE, HOODCABLE, HOOD
-
241606-720 HINGE, HOODHINGE, HOOD
-
250623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
260717-138 FOAM, HOOD - CENTERFOAM, HOOD - CENTER
-
273611-187 DECAL, ''ARCTIC CAT'' - HOODDECAL, ''ARCTIC CAT'' - HOOD
-
280623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
293611-509 DECAL, WARNING - SEATING CAPACITYDECAL, WARNING - SEATING CAPACITY
-
308060-508 RIVETRIVET
-
312606-069 PLUG, HOLE - GAUGEPLUG, HOLE - GAUGE
-
324611-298 DECAL, ''Z 440'' - HOOD - RIGHTDECAL, ''Z 440'' - HOOD - RIGHT
-
324611-299 DECAL, ''Z 440'' - HOOD - LEFTDECAL, ''Z 440'' - HOOD - LEFT
-
330623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
348061-708 RIVETRIVET
-
350123-802 WASHERWASHER
-
360706-548 TAPE, FOILTAPE, FOIL
-
370619-206 TAPE, FOILTAPE, FOIL
-
384611-074 DECAL, JET CHARTDECAL, JET CHART
-
394611-334 DECAL, ''ACT'' - HOOD - RIGHTDECAL, ''ACT'' - HOOD - RIGHT
-
394611-335 DECAL, ''ACT'' - HOOD - LEFTDECAL, ''ACT'' - HOOD - LEFT
-
402606-441 PAD, AIR DUCT - INPAD, AIR DUCT - IN
-
410623-165 CLIP, RETAININGCLIP, RETAINING
