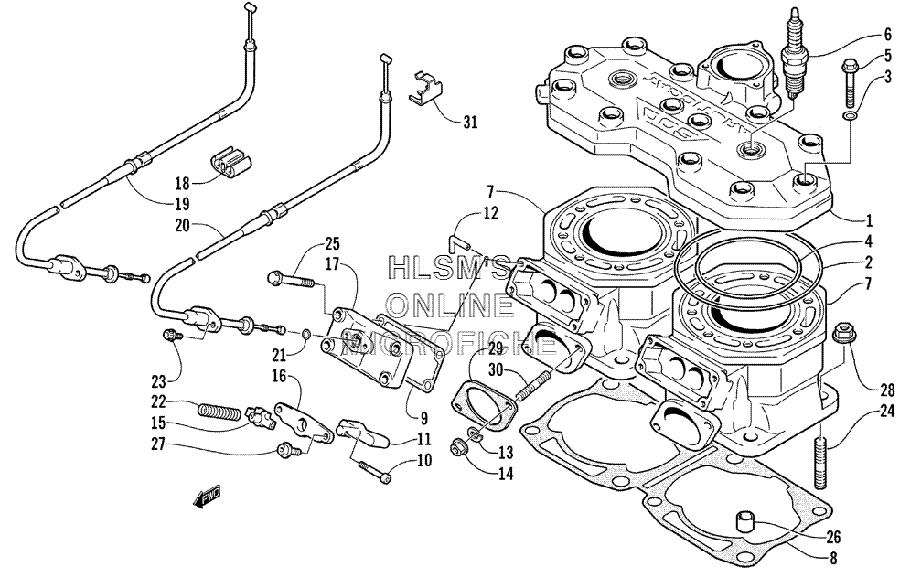

CYLINDER AND HEAD ASSY. для Arctic Cat ZR 500 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-797 HEAD, CYLINDERHEAD, CYLINDER
-
23003-765 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43004-080 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
53004-459 SCREW, CAPSCREW, CAP
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-795 CYLINDERCYLINDER
-
83005-654 GASKET, CYLINDERGASKET, CYLINDER
-
93005-283 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
103005-859 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
113005-939 VALVE, EXHAUSTVALVE, EXHAUST
-
123005-589 ELBOWELBOW
-
133004-280 WASHER, LOCKWASHER, LOCK
-
143004-334 NUTNUT
-
153005-900 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
163005-901 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
173005-662 COVER, CYLINDERCOVER, CYLINDER
-
183005-808 CLAMP, CABLE, EXHAUST VALVECLAMP, CABLE, EXHAUST VALVE
-
193005-824 CABLE, EXHAUST VALVE, PTO SIDECABLE, EXHAUST VALVE, PTO SIDE
-
203005-836 CABLE, EXHAUST VALVE, MAG SIDECABLE, EXHAUST VALVE, MAG SIDE
-
213005-651 O-RINGO-RING
-
223005-736 SPRINGSPRING
-
233005-744 BOLTBOLT
-
243005-596 BOLT, STUDBOLT, STUD
-
253004-426 BOLTBOLT
-
263004-975 PIN, DOWELPIN, DOWEL
-
273004-378 BOLTBOLT
-
283004-491 NUTNUT
-
293003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
303004-301 BOLT, STUDBOLT, STUD
-
313005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
