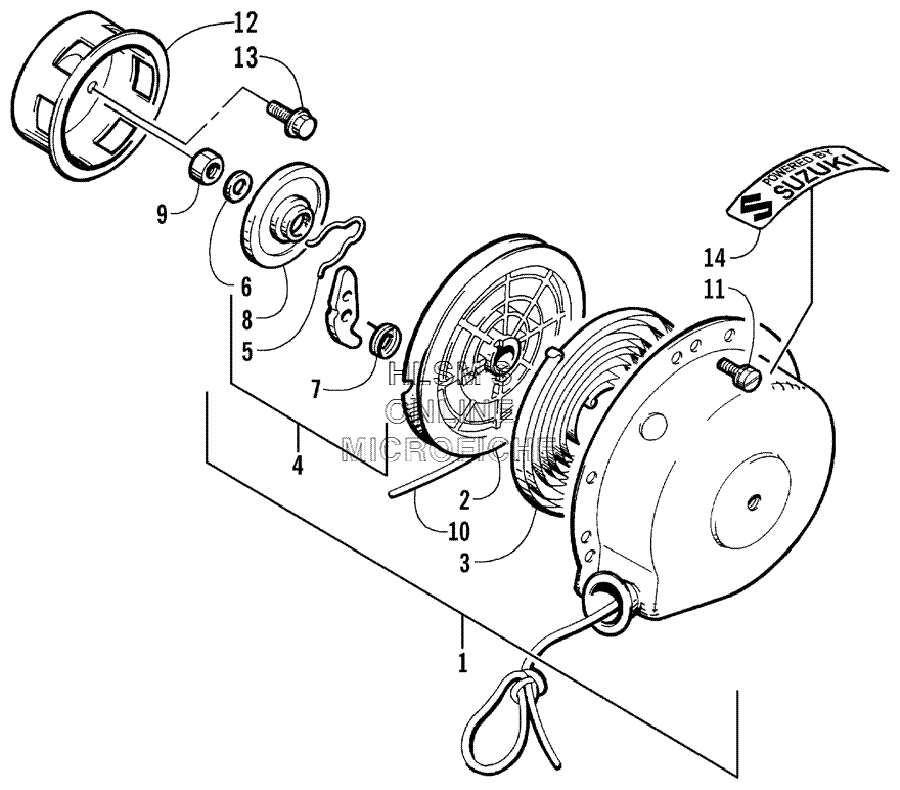

RECOIL STARTER для Arctic Cat ZR 500 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-520 STARTER ASSY. (INC. 2, 10)STARTER ASSY. (INC. 2, 10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43004-729 RATCHET SET (INC. 5, 8)RATCHET SET (INC. 5, 8)
-
63003-397 WASHERWASHER
-
83005-521 PLATE, FRICTIONPLATE, FRICTION
-
93004-488 NUTNUT
-
103003-327 ROPE, STARTERROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123005-531 PULLEY, STARTERPULLEY, STARTER
-
133004-338 SCREW, CAPSCREW, CAP
-
141611-588 DECAL, "POWERED BY"DECAL, "POWERED BY"
