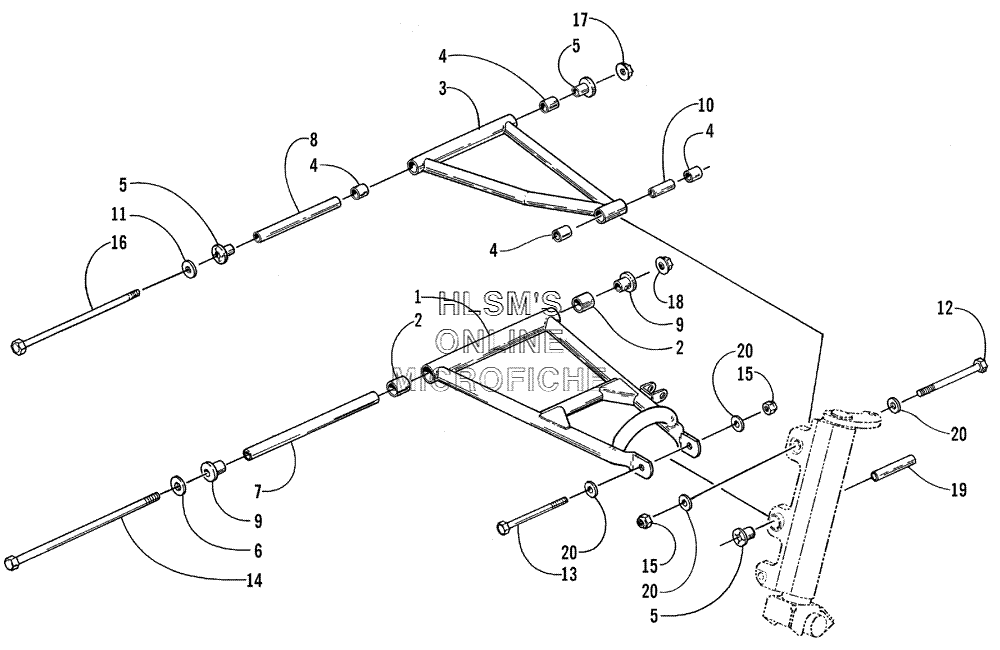

A-ARM ASSY. для Arctic Cat ZRT 600 - 2001 года выпуска
-
№АртикулНазвание
-
10703-710 ARM (LOWER) (RIGHT) (INC. 2)ARM (LOWER) (RIGHT) (INC. 2)
-
10703-711 ARM (LOWER) (LEFT) (INC. 2)ARM (LOWER) (LEFT) (INC. 2)
-
20603-158 BEARINGBEARING
-
30703-707 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
91603-397 AXLE, NON, SERRATEDAXLE, NON, SERRATED
-
100603-864 TUBE, AXLETUBE, AXLE
-
110623-664 WASHERWASHER
-
128013-233 SCREW, CAPSCREW, CAP
-
130623-414 SCREW, CAPSCREW, CAP
-
140623-508 SCREW, CAPSCREW, CAP
-
158040-486 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
-
190603-639 TUBE, AXLE, SPINDLETUBE, AXLE, SPINDLE
-
200623-044 WASHERWASHER
