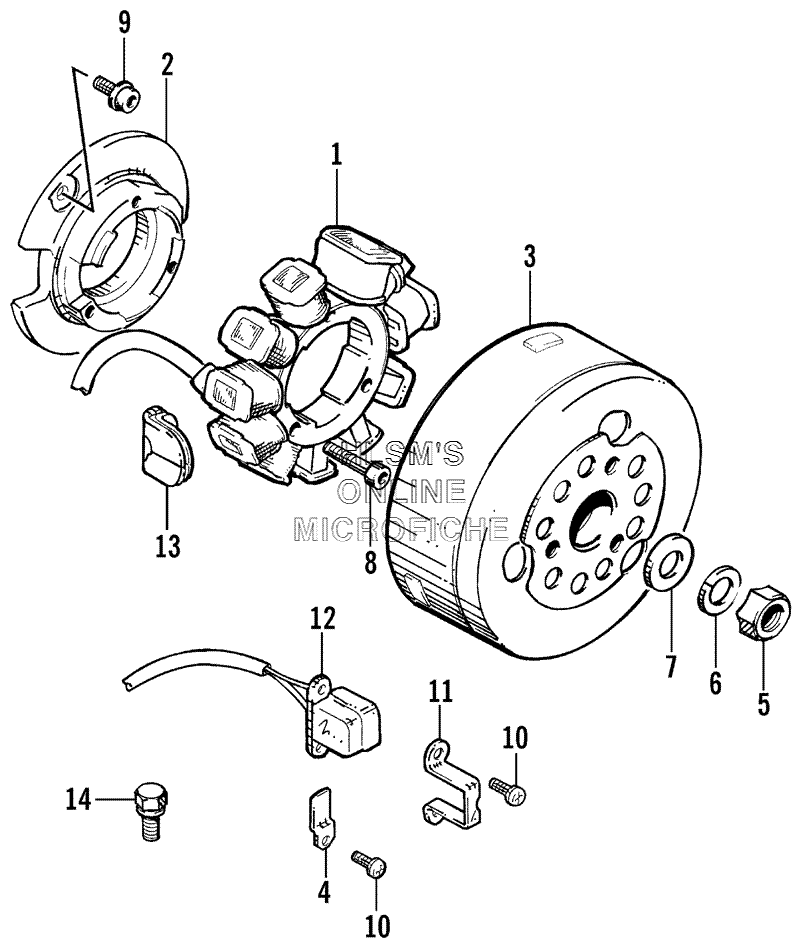

MAGNETO для Arctic Cat ZRT 600 - 2001 года выпуска
-
№АртикулНазвание
-
13005-793 STATOR ASSY.STATOR ASSY.
-
23005-842 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
33005-841 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
43002-317 CLAMPCLAMP
-
50691-370 NUTNUT
-
63004-345 WASHER, LOCKWASHER, LOCK
-
73005-175 WASHERWASHER
-
83004-484 BOLTBOLT
-
93004-378 BOLTBOLT
-
103004-706 SCREWSCREW
-
113003-972 CLAMPCLAMP
-
123005-730 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
133008-034 GROMMETGROMMET
-
143004-338 BOLTBOLT
