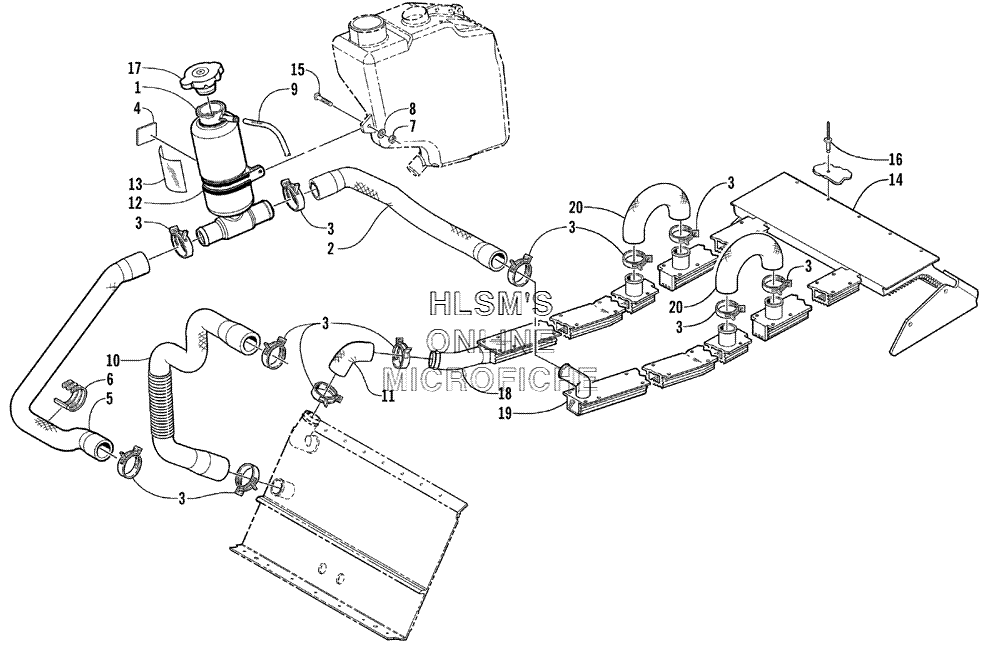

COOLING ASSY. для Arctic Cat MOUNTAIN CAT 500 - 2002 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/HEAT EXCHANGERHOSE, COOLANT TANK/HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-384 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
60623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
78040-366 NUT, LOCKNUT, LOCK
-
88050-217 WASHERWASHER
-
90610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
90610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
100610-418 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
110610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/HEAT EXCHANGER
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130706-548 TAPE, FOILTAPE, FOIL
-
141706-253 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-686 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
181706-826 HEAT EXCHANGER (RIGHT)HEAT EXCHANGER (RIGHT)
-
191706-827 HEAT EXCHANGER (LEFT)HEAT EXCHANGER (LEFT)
-
200610-441 HOSE, COOLANT, HEAT EXCHANGERHOSE, COOLANT, HEAT EXCHANGER
