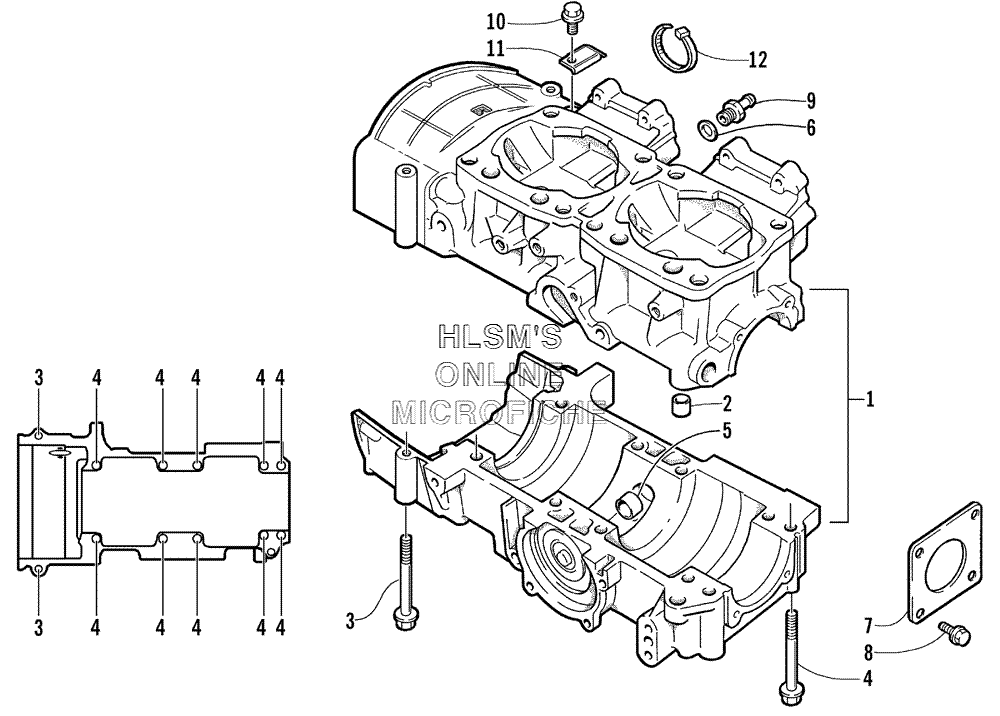

CRANKCASE ASSY. для Arctic Cat MOUNTAIN CAT 500 - 2002 года выпуска
-
№АртикулНазвание
-
13005-664 CRANKCASE ASSY. (INC. 2, 5)CRANKCASE ASSY. (INC. 2, 5)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33004-881 BOLTBOLT
-
43005-514 BOLTBOLT
-
53003-647 BUSHING, OIL PUMP SHAFTBUSHING, OIL PUMP SHAFT
-
63002-276 GASKETGASKET
-
73004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-377 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
93002-040 UNION, HOSEUNION, HOSE
-
100145-105 BOLTBOLT
-
110608-117 BRACKET, GROUND WIRE, ENGINEBRACKET, GROUND WIRE, ENGINE
-
120123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
