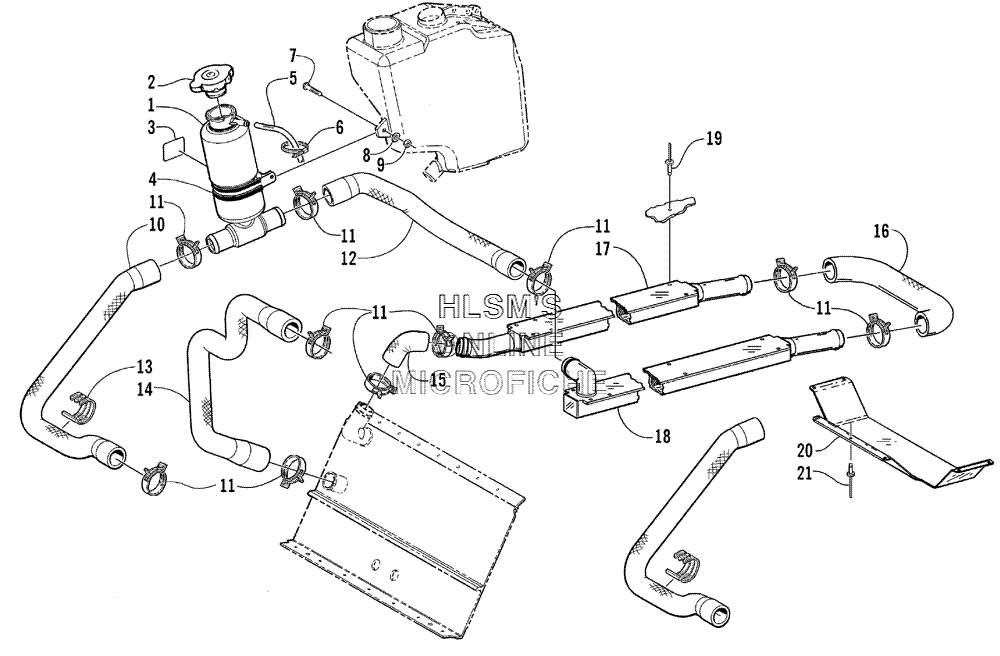

COOLING ASSY. для Arctic Cat PANTERA 550 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20606-268 CAP, FILLER NECKCAP, FILLER NECK
-
32611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
40623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
50610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
50610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
60123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
78017-580 SCREW, MACHINESCREW, MACHINE
-
88050-217 WASHERWASHER
-
98040-366 NUT, LOCKNUT, LOCK
-
100610-378 HOSE, COOLANT, ENGINE/COOLANT TANKHOSE, COOLANT, ENGINE/COOLANT TANK
-
110623-736 CLAMP, HOSECLAMP, HOSE
-
120610-379 HOSE, COOLANT TANK/ LEFT HEAT EXCHANGERHOSE, COOLANT TANK/ LEFT HEAT EXCHANGER
-
130623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
140610-336 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
150610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
160610-361 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
170716-838 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
180716-839 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
198060-706 RIVETRIVET
-
201606-411 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
218060-504 RIVETRIVET
