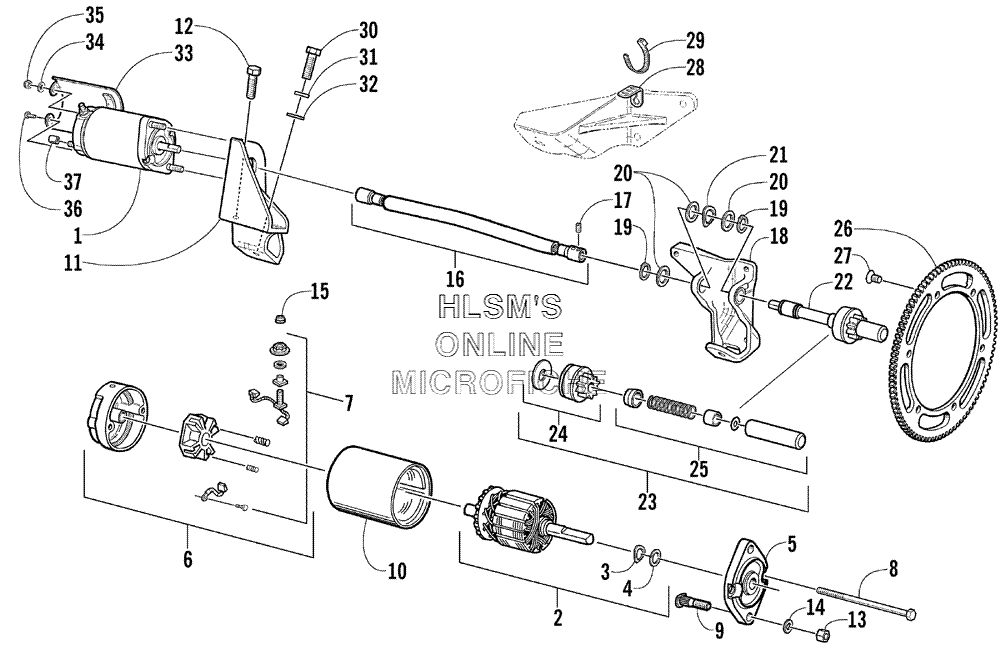

FLEX-DRIVE STARTER MOTOR ASSY. для Arctic Cat PANTERA 550 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSY. (INC. 3, 4)ARMATURE ASSY. (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
80645-128 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110708-135 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
120623-640 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138040-426 NUT, LOCKNUT, LOCK
-
148050-242 WASHERWASHER
-
150623-122 NUT, LOCKNUT, LOCK
-
160745-156 SHAFT, FLEX, DRIVE (INC. 17)SHAFT, FLEX, DRIVE (INC. 17)
-
170623-891 SCREW, SETSCREW, SET
-
180745-135 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
190645-256 RING, SNAPRING, SNAP
-
200645-254 WASHER, THRUSTWASHER, THRUST
-
210645-255 WASHER, WAVEWASHER, WAVE
-
220745-150 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 23, 25)DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 23, 25)
-
230745-145 KIT, PINION DRIVE ASSY. (INC. 24, 25)KIT, PINION DRIVE ASSY. (INC. 24, 25)
-
240745-146 PINION DRIVE ASSY.PINION DRIVE ASSY.
-
250645-186 PINION STOPPER ASSY.PINION STOPPER ASSY.
-
260645-169 RING GEARRING GEAR
-
270623-441 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
282606-281 TAB, FLEX, DRIVE SHAFTTAB, FLEX, DRIVE SHAFT
-
290623-909 CABLE TIE, 8.5 IN.CABLE TIE, 8.5 IN.
-
308002-224 SCREW, CAPSCREW, CAP
-
318051-277 WASHER, LOCKWASHER, LOCK
-
328050-277 WASHERWASHER
-
330745-153 SHIELD, HEATSHIELD, HEAT
-
348050-212 WASHERWASHER
-
358040-366 NUT, LOCKNUT, LOCK
-
360623-892 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
370623-404 CAP, PROTECTORCAP, PROTECTOR
