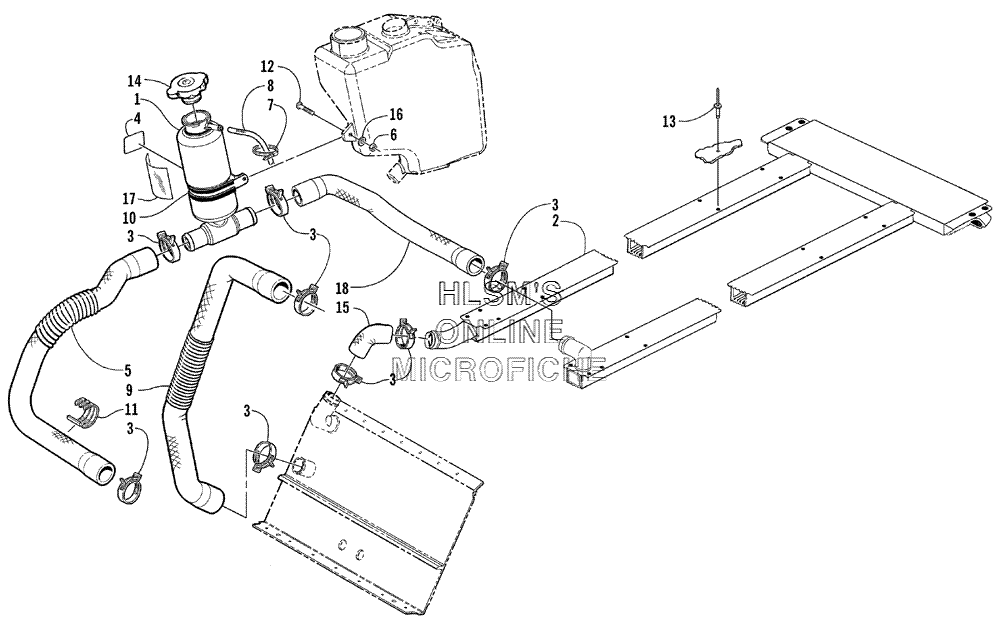

COOLING ASSY. для Arctic Cat PANTERA 800 EFI ESR (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
21706-919 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-474 HOSE, ENGINE/COOLANT TANKHOSE, ENGINE/COOLANT TANK
-
68040-366 NUT, LOCKNUT, LOCK
-
70123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
80610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
80610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
90610-475 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
100623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
110623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
128017-580 SCREW, MACHINESCREW, MACHINE
-
138060-706 RIVETRIVET
-
140606-268 CAP, FILLER NECKCAP, FILLER NECK
-
150610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
168050-217 WASHERWASHER
-
170706-548 TAPE, FOILTAPE, FOIL
-
180610-379 HOSE, COOLANT TANK/REAR HEAT EXCHANGERHOSE, COOLANT TANK/REAR HEAT EXCHANGER
