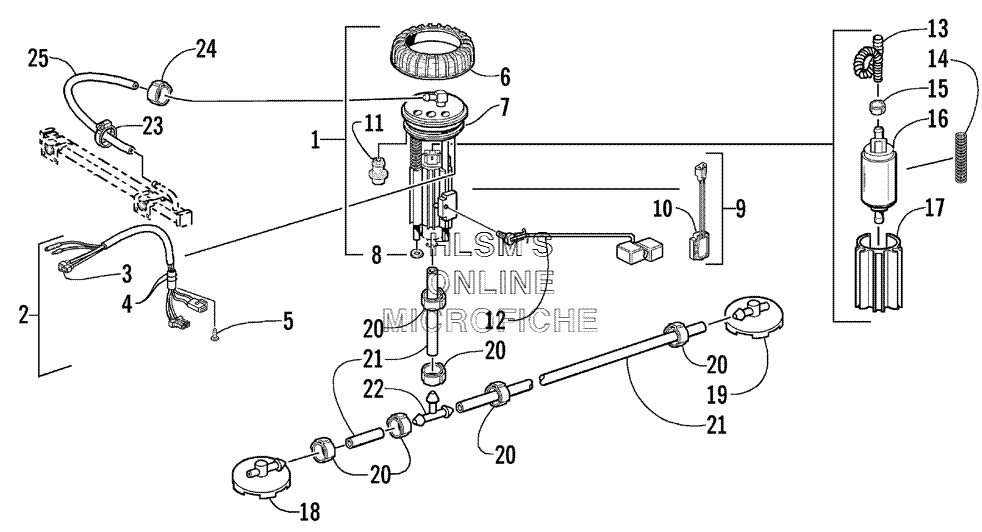

FUEL PUMP ASSY. для Arctic Cat PANTERA 800 EFI ESR (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11670-300 PUMP, FUEL, ASSY. (INC. 2, 17)PUMP, FUEL, ASSY. (INC. 2, 17)
-
22639-572 FUEL PUMP HARNESS (INC. 3, 4)FUEL PUMP HARNESS (INC. 3, 4)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
40670-381 O-RINGO-RING
-
51670-412 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
92639-571 KIT, FUEL SENSOR (INC. 10)KIT, FUEL SENSOR (INC. 10)
-
100670-459 ELEMENT, FUEL SENSORELEMENT, FUEL SENSOR
-
111670-414 REGULATOR, FUELREGULATOR, FUEL
-
120670-460 ARM, FLOATARM, FLOAT
-
131670-154 HOSE, FUEL PUMP, TOPHOSE, FUEL PUMP, TOP
-
141670-411 SPRING, FUEL PUMP ASSY.SPRING, FUEL PUMP ASSY.
-
151670-159 CLAMP, HOSECLAMP, HOSE
-
161670-153 PUMP, FUELPUMP, FUEL
-
171670-413 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
181670-140 PICKUP, FUELPICKUP, FUEL
-
191670-088 PICKUP, FUELPICKUP, FUEL
-
200610-415 CLAMP, HOSECLAMP, HOSE
-
210610-011 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
220670-235 T, FITTINGT, FITTING
-
230623-373 CLAMP, HOSECLAMP, HOSE
-
240610-419 CLAMP, HOSECLAMP, HOSE
-
250610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
