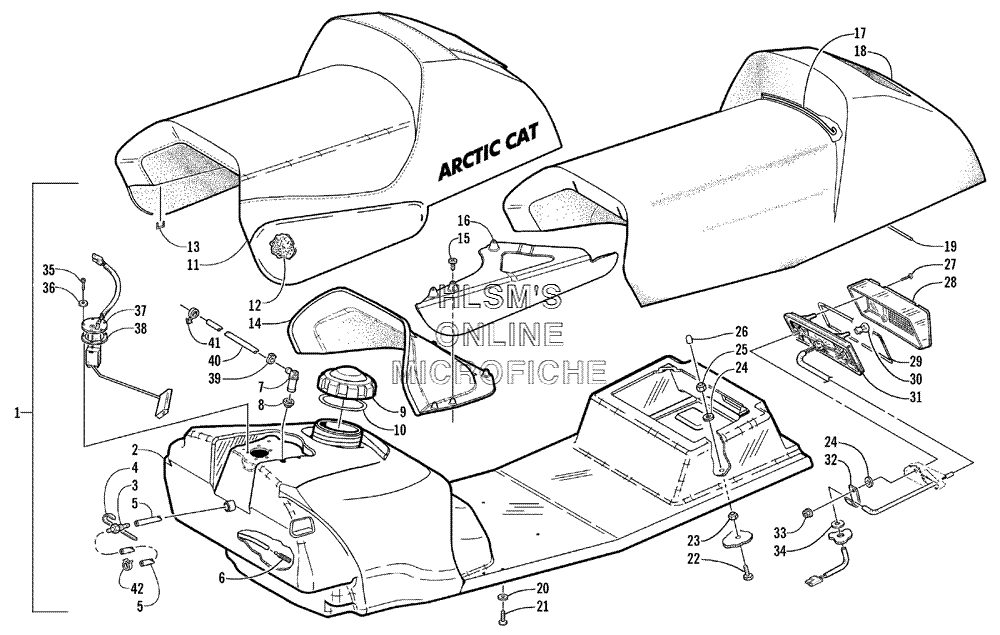

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat THUNDERCAT - 2002 года выпуска
-
№АртикулНазвание
-
-1718-208 COMPLETE SEAT ASSY.COMPLETE SEAT ASSY.
-
11718-208 COMPLETE SEAT ASSY. (INC. 2, 21)COMPLETE SEAT ASSY. (INC. 2, 21)
-
20770-585 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
31670-173 OUTLET, TANKOUTLET, TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
56101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
56101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
60510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
71670-324 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMETGROMMET
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, TANK CAPSEAL, TANK CAP
-
111706-953 COVER, SEAT (INC. 12)COVER, SEAT (INC. 12)
-
120617-417 PAD, FOAM, TUNNELPAD, FOAM, TUNNEL
-
130624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
141606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
150623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
161606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
171606-150 WIRE, SEATWIRE, SEAT
-
181706-282 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
190606-057 WIRE, SEATWIRE, SEAT
-
208050-217 WASHERWASHER
-
210623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
228002-042 SCREW, CAPSCREW, CAP
-
238041-366 NUT, LOCKNUT, LOCK
-
240623-184 WASHERWASHER
-
258040-366 NUT, LOCKNUT, LOCK
-
260623-404 CAP, PROTECTORCAP, PROTECTOR
-
270609-093 SCREW, RETAININGSCREW, RETAINING
-
280609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
290609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
300109-460 BULBBULB
-
310609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
323002-964 CLAMP, WIRECLAMP, WIRE
-
330623-038 NUT, LOCKNUT, LOCK
-
340617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
350624-312 SCREW, MACHINESCREW, MACHINE
-
360623-371 WASHER, NYLONWASHER, NYLON
-
370620-255 SENDER, FUEL LEVEL (INC. 38)SENDER, FUEL LEVEL (INC. 38)
-
380670-474 GASKET, FUEL LEVEL SENDERGASKET, FUEL LEVEL SENDER
-
390623-063 CLAMP, HOSECLAMP, HOSE
-
400610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
400610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
410623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
420124-045 CLAMP, HOSECLAMP, HOSE
