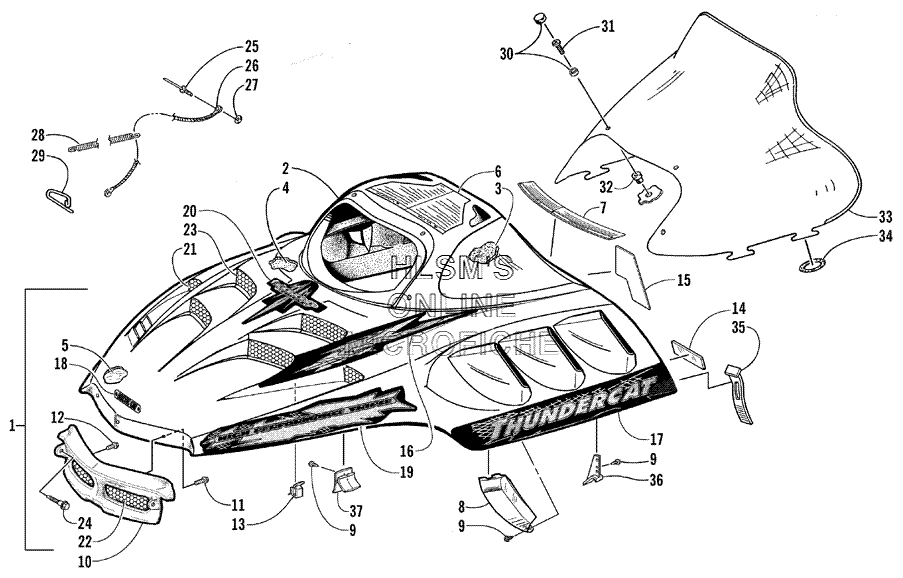

HOOD AND WINDSHIELD ASSY. для Arctic Cat THUNDERCAT - 2002 года выпуска
-
№АртикулНазвание
-
11718-037 HOOD W/DECALS (INC. 2, 20)HOOD W/DECALS (INC. 2, 20)
-
21718-115 HOOD W/O DECALS (INC. 3, 15)HOOD W/O DECALS (INC. 3, 15)
-
30717-112 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30717-113 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
40717-136 FOAM, HOOD (RIGHT)FOAM, HOOD (RIGHT)
-
40717-137 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
50619-206 TAPE, FOILTAPE, FOIL
-
63611-360 DECAL, WARNINGDECAL, WARNING
-
74611-010 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
81606-632 PLUG, VENT (RIGHT)PLUG, VENT (RIGHT)
-
81606-633 PLUG, VENT (LEFT)PLUG, VENT (LEFT)
-
90623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
102606-311 HINGE, HOOD (SILVER)HINGE, HOOD (SILVER)
-
110623-790 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120623-791 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130123-394 CLIP, RETAININGCLIP, RETAINING
-
143611-509 DECAL, SEATING CAPACITYDECAL, SEATING CAPACITY
-
153611-580 DECAL REVERSEDECAL REVERSE
-
164611-158 DECAL, HOOD (CENTER) RIGHTDECAL, HOOD (CENTER) RIGHT
-
164611-157 DECAL, HOOD (CENTER) LEFTDECAL, HOOD (CENTER) LEFT
-
174611-156 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
174611-155 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
184611-419 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
194611-162 DECAL, HOOD, FORWARD RIGHTDECAL, HOOD, FORWARD RIGHT
-
194611-161 DECAL, HOOD, FORWARD LEFTDECAL, HOOD, FORWARD LEFT
-
204611-163 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
211706-351 SCREEN, VENT, HOOD (RIGHT) (SILVER)SCREEN, VENT, HOOD (RIGHT) (SILVER)
-
211706-352 SCREEN, VENT, HOOD (LEFT) (SILVER)SCREEN, VENT, HOOD (LEFT) (SILVER)
-
221706-355 SCREEN, HOOD, HINGE (SILVER)SCREEN, HOOD, HINGE (SILVER)
-
231706-354 SCREEN, VENT, HOOD (CENTER) (RIGHT) (SILVER)SCREEN, VENT, HOOD (CENTER) (RIGHT) (SILVER)
-
231706-353 SCREEN, VENT, HOOD (CENTER) (LEFT) (SILVER)SCREEN, VENT, HOOD (CENTER) (LEFT) (SILVER)
-
240623-777 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
258061-708 RIVETRIVET
-
260616-614 CABLE, HOODCABLE, HOOD
-
270123-802 WASHERWASHER
-
280123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
290115-528 HOOK, CABLEHOOK, CABLE
-
300124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
310623-902 SCREW, MACHINESCREW, MACHINE
-
320623-845 NUT, EXPANSIONNUT, EXPANSION
-
331606-323 WINDSHIELDWINDSHIELD
-
340616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
351606-067 STRAP, HOLD (DOWN)STRAP, HOLD (DOWN)
-
361606-321 GUIDE, HOOD (REAR)GUIDE, HOOD (REAR)
-
371606-622 GUIDE, HOOD (FRONT)GUIDE, HOOD (FRONT)
