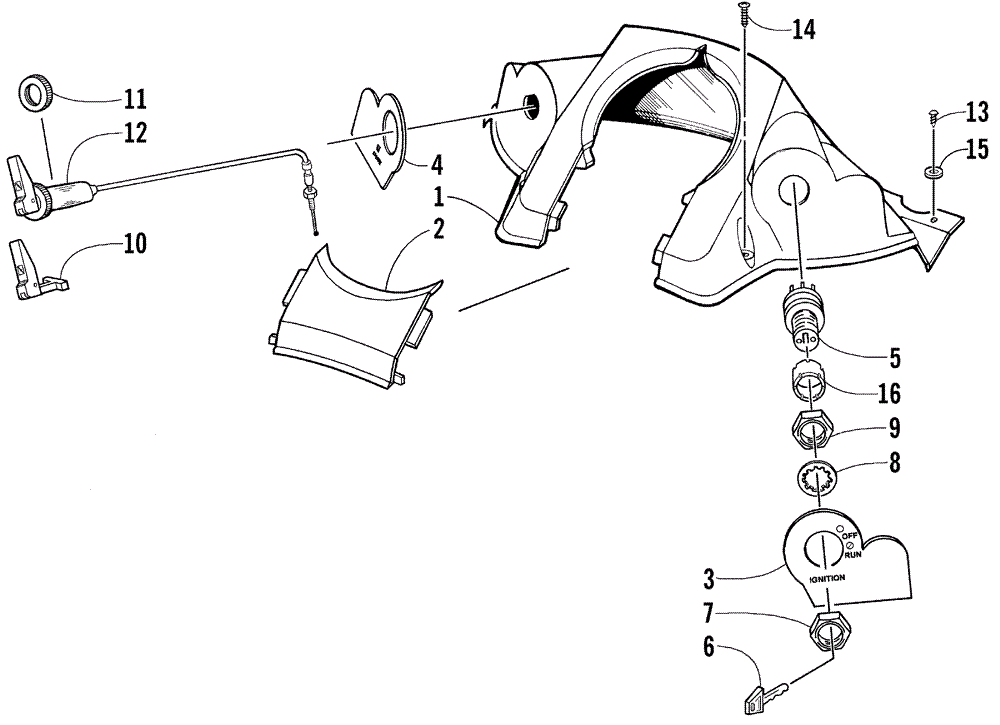

CONSOLE AND SWITCH ASSY. для Arctic Cat Z 370 (ES) - 2002 года выпуска
-
№АртикулНазвание
-
11606-735 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-744 DECAL, CONSOLE (RIGHT) (ES)DECAL, CONSOLE (RIGHT) (ES)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-449 SWITCH, IGNITION (INC. 6) (ES)SWITCH, IGNITION (INC. 6) (ES)
-
70609-113 NUT, IGNITIONNUT, IGNITION
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
100636-062 CHOKE LEVER KITCHOKE LEVER KIT
-
110623-054 NUT, CHOKENUT, CHOKE
-
120687-085 CABLE, CHOKECABLE, CHOKE
-
130623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-157 WASHERWASHER
-
160609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
