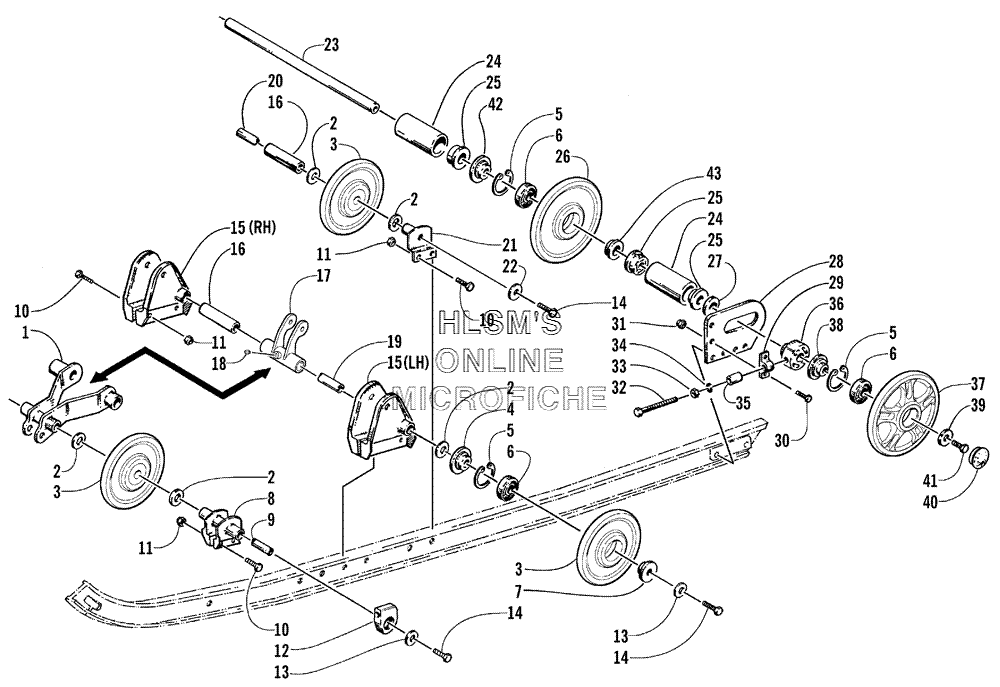

IDLER WHEEL ASSY. для Arctic Cat Z 370 (ES) - 2002 года выпуска
-
№АртикулНазвание
-
10704-319 BRACKET FRONT SHOCKBRACKET FRONT SHOCK
-
20123-439 WASHERWASHER
-
30114-240 WHEEL, IDLER (INC 4, 7)WHEEL, IDLER (INC 4, 7)
-
40123-341 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
50123-798 RING, RETAININGRING, RETAINING
-
60107-598 BEARINGBEARING
-
70123-340 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
80704-201 BRACKETBRACKET
-
90604-578 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
108002-131 SCREW, CAPSCREW, CAP
-
118040-426 NUT, LOCKNUT, LOCK
-
120604-403 SLIDE, SPRINGSLIDE, SPRING
-
130123-260 WASHERWASHER
-
148002-132 SCREW, CAPSCREW, CAP
-
150704-190 BRACKET, MOUNTING (RIGHT)BRACKET, MOUNTING (RIGHT)
-
150704-191 BRACKET, MOUNTING (LEFT)BRACKET, MOUNTING (LEFT)
-
160603-105 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
170704-589 PIVOT, SHOCK (INC. 18)PIVOT, SHOCK (INC. 18)
-
180623-922 FITTING, GREASE (PRESS, FIT)FITTING, GREASE (PRESS, FIT)
-
190604-576 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
200604-142 AXLE, INNERAXLE, INNER
-
210704-196 SUPPORT, IDLER WHEELSUPPORT, IDLER WHEEL
-
220623-140 WASHERWASHER
-
230604-208 AXLE (REAR) IDLER WHEELAXLE (REAR) IDLER WHEEL
-
240604-730 SPACER (REAR) IDLER WHEELSPACER (REAR) IDLER WHEEL
-
250604-968 BUSHING, SPACERBUSHING, SPACER
-
261604-685 WHEEL, IDLER (INC. 5, 6 AND 42, 43)WHEEL, IDLER (INC. 5, 6 AND 42, 43)
-
270623-220 WASHERWASHER
-
281604-153 HOUSING (REAR) AXLEHOUSING (REAR) AXLE
-
290604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
308002-041 SCREW, CAPSCREW, CAP
-
318040-366 NUT, LOCKNUT, LOCK
-
320623-123 SCREW, CAPSCREW, CAP
-
338042-486 NUTNUT
-
348051-277 WASHER, LOCKWASHER, LOCK
-
350604-298 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
360604-165 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
371604-692 WHEEL, IDLER (INC. 5, 6 AND 38) (GREEN)WHEEL, IDLER (INC. 5, 6 AND 38) (GREEN)
-
371604-694 WHEEL, IDLER (INC. 5, 6 AND 38) (SILVER) (ES)WHEEL, IDLER (INC. 5, 6 AND 38) (SILVER) (ES)
-
381604-774 INSERT, WHEELINSERT, WHEEL
-
390123-570 WASHERWASHER
-
400604-246 CAP, IDLER WHEEL (BLACK)CAP, IDLER WHEEL (BLACK)
-
418002-223 SCREW, CAPSCREW, CAP
-
421604-773 INSERT, IDLER WHEEL, INSIDEINSERT, IDLER WHEEL, INSIDE
-
431604-772 INSERT, IDLER WHEEL, OUTSIDEINSERT, IDLER WHEEL, OUTSIDE
