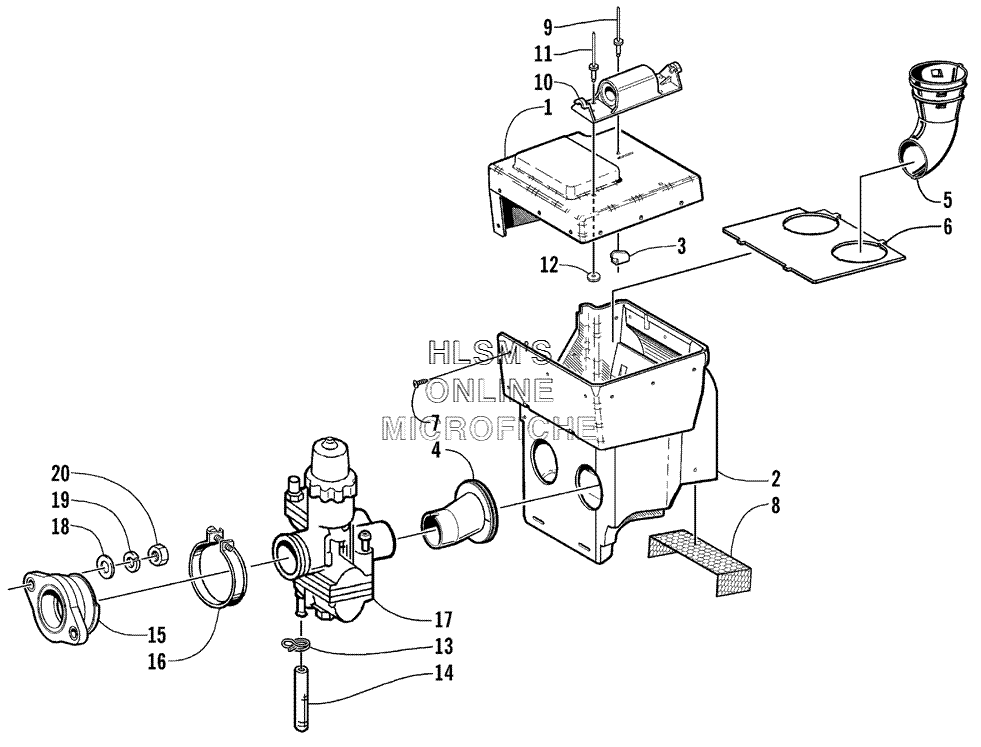

AIR SILENCER ASSY. для Arctic Cat Z 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11670-022 COVER, AIR SILENCERCOVER, AIR SILENCER
-
20670-919 SILENCER, AIRSILENCER, AIR
-
31606-441 HOLD, DOWN, STRAPHOLD, DOWN, STRAP
-
40670-808 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
50670-617 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
61670-033 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
81606-451 SCREEN, AIR SILENCERSCREEN, AIR SILENCER
-
98061-708 RIVETRIVET
-
100636-172 CADDY, SPARK PLUG (INC. 11, 12)CADDY, SPARK PLUG (INC. 11, 12)
-
118061-628 RIVETRIVET
-
120123-802 WASHERWASHER
-
130623-652 CLAMP, HOSECLAMP, HOSE
-
140610-442 HOSE, DRAINHOSE, DRAIN
-
150115-544 FLANGE, CARBURETOR (INC. 16)FLANGE, CARBURETOR (INC. 16)
-
160109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
171670-240 CARBURETOR, VM34, 571CARBURETOR, VM34, 571
-
183003-079 WASHERWASHER
-
193003-078 WASHER, LOCKWASHER, LOCK
-
203003-623 NUTNUT
