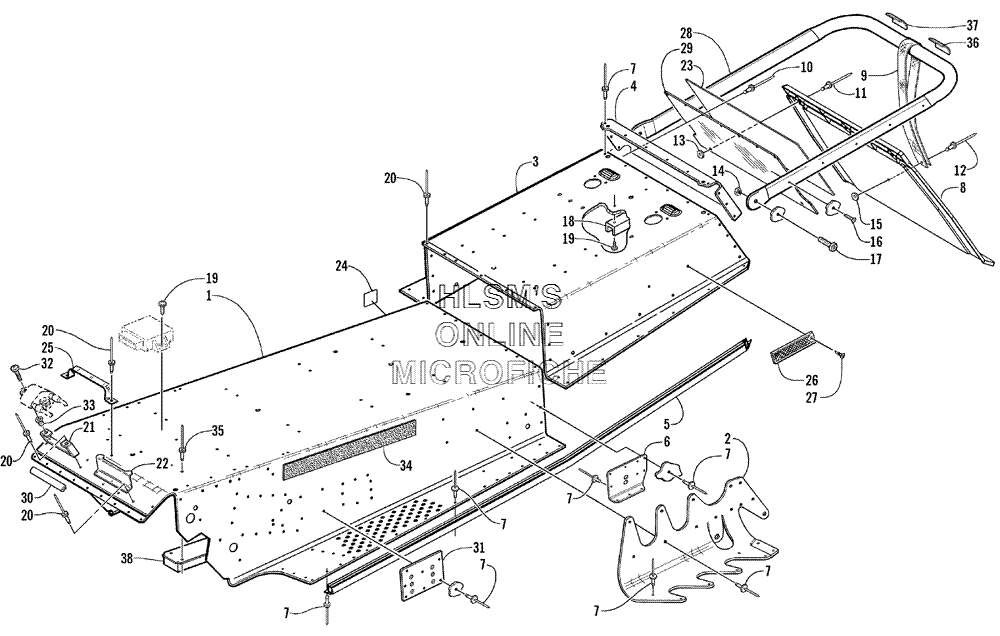

TUNNEL AND REAR BUMPER для Arctic Cat Z 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11718-442 TUNNEL ASSY. (INC. 2, 7)TUNNEL ASSY. (INC. 2, 7)
-
21606-964 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
21606-965 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
32706-139 EXTENSION, TUNNEL, FORMEDEXTENSION, TUNNEL, FORMED
-
41606-662 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
51606-966 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
51606-967 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
62606-047 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
62606-048 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
70123-418 RIVETRIVET
-
70623-072 RIVETRIVET
-
70623-806 RIVETRIVET
-
78060-506 RIVETRIVET
-
81706-005 SNOWFLAPSNOWFLAP
-
91606-712 STRAP, SNOWFLAPSTRAP, SNOWFLAP
-
108061-506 RIVETRIVET
-
118060-808 RIVETRIVET
-
128061-708 RIVETRIVET
-
130623-759 WASHERWASHER
-
148041-366 NUT, LOCKNUT, LOCK
-
158050-157 WASHERWASHER
-
160623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
178017-610 SCREW, MACHINESCREW, MACHINE
-
182606-303 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
190623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-166 RIVETRIVET
-
211606-718 BRACKET, MOUNTING, COILBRACKET, MOUNTING, COIL
-
221606-676 BRACKET, SUPPORT, AIR SILENCERBRACKET, SUPPORT, AIR SILENCER
-
234611-518 DECAL, SNOWFLAPDECAL, SNOWFLAP
-
240411-053 DECAL, CEDECAL, CE
-
250607-080 BRACKET, HOSE HOLD, DOWNBRACKET, HOSE HOLD, DOWN
-
260606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
270623-269 CLIP, RETAININGCLIP, RETAINING
-
282706-048 BUMPER (REAR) (BLACK)BUMPER (REAR) (BLACK)
-
291606-713 EXTENSION, SNOWFLAPEXTENSION, SNOWFLAP
-
300706-371 TRIMTRIM
-
311606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
320623-833 SCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHERSCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHER
-
330623-779 INSERTINSERT
-
341706-162 VELCRO HOOKVELCRO HOOK
-
358060-706 RIVETRIVET
-
361611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
371611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
380716-973 WEARSTRIPWEARSTRIP
