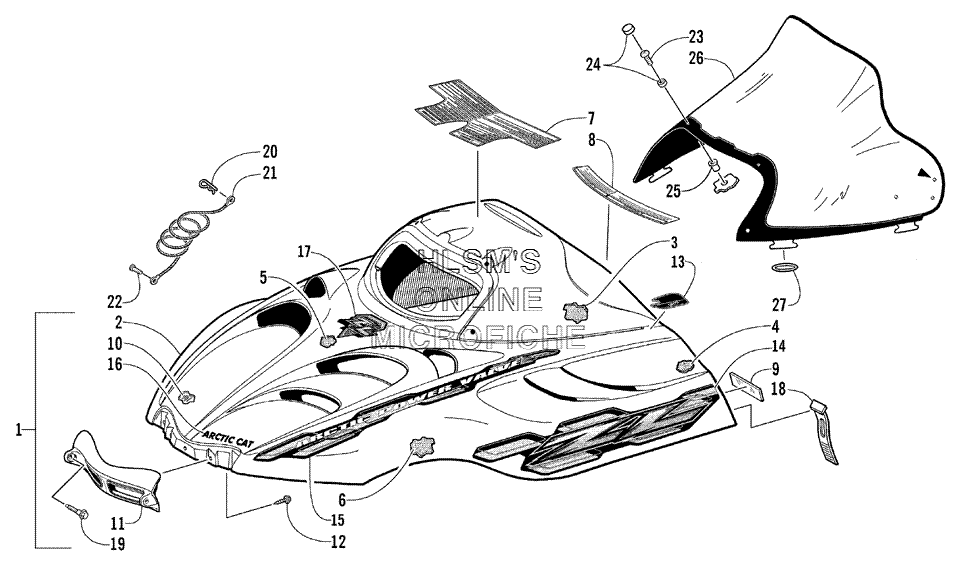

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZL 500 - 2002 года выпуска
-
№АртикулНазвание
-
11718-042 HOOD W/DECALS (BLACK) (INC. 2, 17)HOOD W/DECALS (BLACK) (INC. 2, 17)
-
20718-839 HOOD W/O DECALS (BLACK) (INC. 3, 13)HOOD W/O DECALS (BLACK) (INC. 3, 13)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
60617-327 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
134611-334 DECAL, "APV", HOOD (RIGHT)DECAL, "APV", HOOD (RIGHT)
-
134611-335 DECAL, "APV", HOOD (LEFT)DECAL, "APV", HOOD (LEFT)
-
144611-136 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
144611-137 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
154611-190 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
154611-189 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
163611-186 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
174611-372 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
181606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
190623-690 SCREW, MACHINESCREW, MACHINE
-
200623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
212606-247 CABLE, HOODCABLE, HOOD
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230623-902 SCREW, MACHINESCREW, MACHINE
-
240124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
262606-432 WINDSHIELDWINDSHIELD
-
270616-032 O-RINGO-RING
