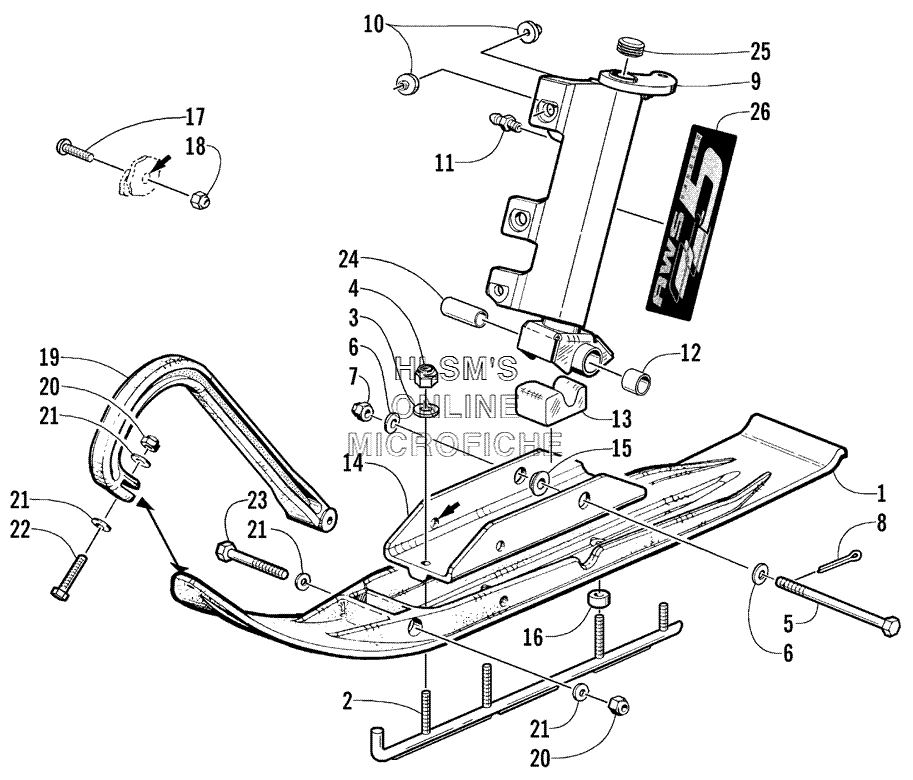

SKI AND SPINDLE ASSY. для Arctic Cat ZL 500 - 2002 года выпуска
-
№АртикулНазвание
-
10703-595 SKI, PLASTICSKI, PLASTIC
-
21703-003 WEARBARWEARBAR
-
38050-277 WASHERWASHER
-
48040-486 NUT, LOCKNUT, LOCK
-
50623-552 SCREW, CAPSCREW, CAP
-
60623-728 WASHERWASHER
-
70123-296 NUT, LOCKNUT, LOCK
-
80123-458 PIN, COTTERPIN, COTTER
-
90703-648 SPINDLE, STEERING (RIGHT) (BLACK) (INC. 10, 12)SPINDLE, STEERING (RIGHT) (BLACK) (INC. 10, 12)
-
90703-649 SPINDLE, STEERING (LEFT) (BLACK) (INC. 10, 12)SPINDLE, STEERING (LEFT) (BLACK) (INC. 10, 12)
-
100603-647 INSERT, SPINDLEINSERT, SPINDLE
-
110623-010 FITTING, GREASEFITTING, GREASE
-
120603-158 BEARINGBEARING
-
130603-036 DAMPERDAMPER
-
140703-596 SADDLE, SKI (INC. 15)SADDLE, SKI (INC. 15)
-
150603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
160603-616 SPACERSPACER
-
178017-581 SCREW, MACHINESCREW, MACHINE
-
188041-366 NUT, LOCKNUT, LOCK
-
190603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
208041-426 NUT, LOCKNUT, LOCK
-
218050-247 WASHERWASHER
-
228002-135 SCREW, CAPSCREW, CAP
-
238002-143 SCREW, CAPSCREW, CAP
-
240603-034 AXLE, SPINDLEAXLE, SPINDLE
-
250623-831 CAP, SPINDLECAP, SPINDLE
-
264611-357 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
