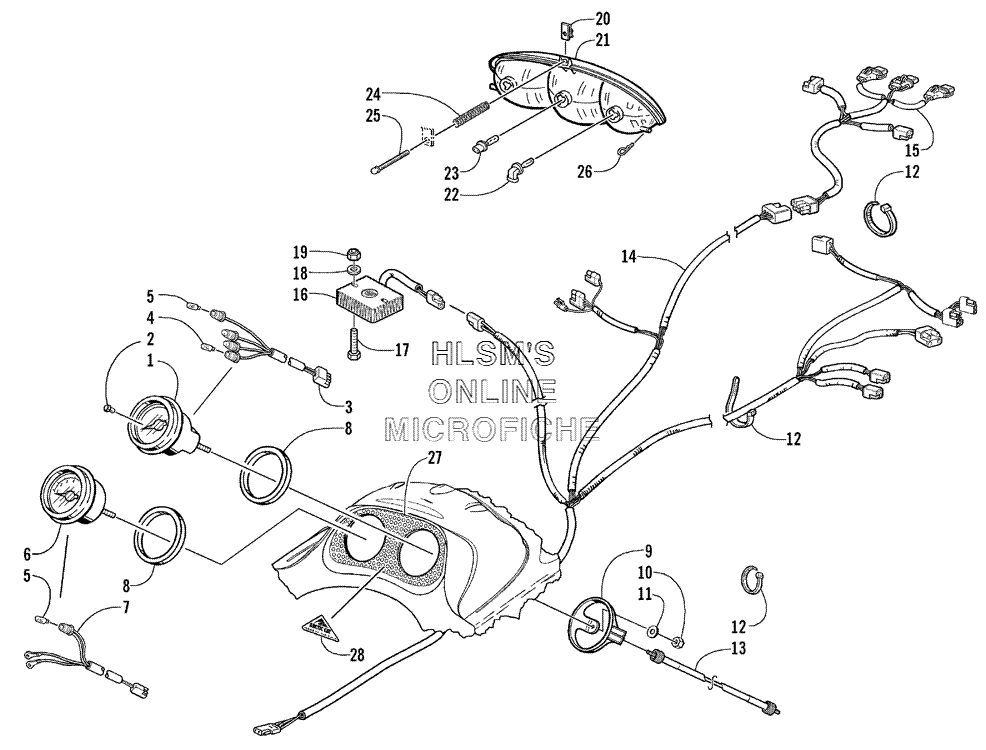

INSTRUMENTS AND WIRING ASSY. для Arctic Cat ZL 600 EFI SS - 2002 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-237 TACHOMETER (INC. ONE NO. 5 AND 7)TACHOMETER (INC. ONE NO. 5 AND 7)
-
70620-215 HARNESS, TACHOMETER (INC. ONE NO. 5)HARNESS, TACHOMETER (INC. ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
100623-038 NUT W/WASHERNUT W/WASHER
-
118050-212 WASHERWASHER
-
120123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
130620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
140686-753 HARNESS, MAINHARNESS, MAIN
-
150686-515 HARNESS, HOODHARNESS, HOOD
-
160630-142 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
178002-044 SCREW, CAPSCREW, CAP
-
188050-217 WASHERWASHER
-
198041-366 NUT, LOCKNUT, LOCK
-
200623-757 NUT, UNUT, U
-
210609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
220609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
230609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
240623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
250623-467 SCREW, THUMBSCREW, THUMB
-
260623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
274611-302 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
283611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
