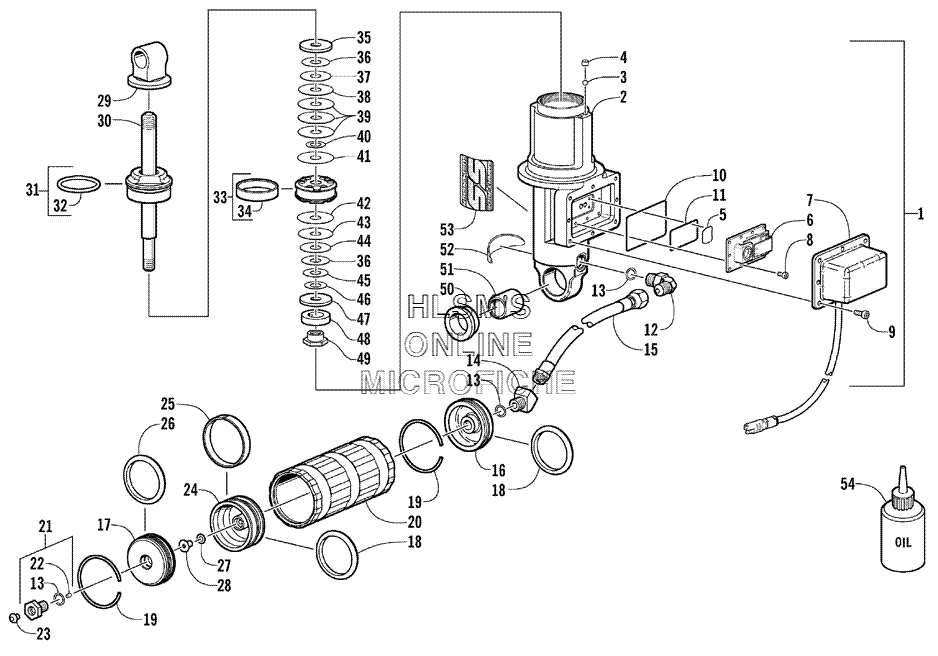

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZL 600 EFI SS - 2002 года выпуска
-
№АртикулНазвание
-
-0704-519 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-644 BODY, SHOCK, ASSY. (INC. 2, 11)BODY, SHOCK, ASSY. (INC. 2, 11)
-
21604-665 BODY, SHOCKBODY, SHOCK
-
31604-653 BALL, PORT PLUGBALL, PORT PLUG
-
41604-652 PLUG, PORTPLUG, PORT
-
51604-622 VALVE, BACK FLOWVALVE, BACK FLOW
-
60704-604 HOLDER, BENDER, ASSY.HOLDER, BENDER, ASSY.
-
71603-868 COVER/HARNESS ASSY.COVER/HARNESS ASSY.
-
80623-860 SCREW, MACHINESCREW, MACHINE
-
90623-864 SCREW, CAPSCREW, CAP
-
101604-654 O-RING, COVERO-RING, COVER
-
111604-625 O-RINGO-RING
-
121604-533 ELBOW, FITTING (INC. ONE NO. 13)ELBOW, FITTING (INC. ONE NO. 13)
-
131604-284 O-RINGO-RING
-
141604-534 ELBOW, FLARE TUBE, 45° (INC. ONE NO. 13)ELBOW, FLARE TUBE, 45° (INC. ONE NO. 13)
-
151604-790 HOSE, RESERVOIRHOSE, RESERVOIR
-
161604-728 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
170603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
180603-968 O-RING, END CAP, RESERVOIRO-RING, END CAP, RESERVOIR
-
190603-985 RETAINER, END CAPRETAINER, END CAP
-
201603-315 BODY, RESERVOIRBODY, RESERVOIR
-
210704-383 VALVE, PRESSURE, ASSY. (INC. ONE NO. 13 AND 22)VALVE, PRESSURE, ASSY. (INC. ONE NO. 13 AND 22)
-
230624-433 SCREW, MACHINESCREW, MACHINE
-
240603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
250603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
260603-987 O-RINGO-RING
-
270423-182 O-RINGO-RING
-
280623-697 SCREW, MACHINESCREW, MACHINE
-
291604-796 EYELET, SHOCKEYELET, SHOCK
-
301604-659 ROD, SHOCKROD, SHOCK
-
310704-386 END CAP, SHOCK, ASSY. (INC. 32)END CAP, SHOCK, ASSY. (INC. 32)
-
321604-271 O-RING, END CAPO-RING, END CAP
-
331604-640 PISTON ASSY. (INC. 34)PISTON ASSY. (INC. 34)
-
341604-643 BAND, TEFLONBAND, TEFLON
-
351604-272 WASHER, TOP OUTWASHER, TOP OUT
-
362603-075 VALVE, SHOCK 1.000 X 0.010 IN.VALVE, SHOCK 1.000 X 0.010 IN.
-
372603-096 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
382603-127 VALVE, SHOCK 1.250 X 0.015 IN.VALVE, SHOCK 1.250 X 0.015 IN.
-
392603-137 VALVE, SHOCK 1.300 X 0.015 IN.VALVE, SHOCK 1.300 X 0.015 IN.
-
402603-044 VALVE, SHOCK 0.700 X 0.008 IN.VALVE, SHOCK 0.700 X 0.008 IN.
-
412603-134 VALVE, SHOCK 1.300 X 0.008 IN.VALVE, SHOCK 1.300 X 0.008 IN.
-
422603-135 VALVE, SHOCK 1.300 X 0.010 IN.VALVE, SHOCK 1.300 X 0.010 IN.
-
432603-125 VALVE, SHOCK 1.250 X 0.010 IN.VALVE, SHOCK 1.250 X 0.010 IN.
-
442603-095 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
452603-065 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
462603-055 VALVE, SHOCK 0.800 X.0.010 IN.VALVE, SHOCK 0.800 X.0.010 IN.
-
470624-523 WASHER, BACKUPWASHER, BACKUP
-
481604-632 MAGNETMAGNET
-
490624-522 NUT, LOCKNUT, LOCK
-
501604-287 BUSHING, SHOCKBUSHING, SHOCK
-
511604-502 SLEEVE, EYELETSLEEVE, EYELET
-
523611-007 DECAL, WARNINGDECAL, WARNING
-
534611-444 DECAL, "SS", SHOCKDECAL, "SS", SHOCK
-
541639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
