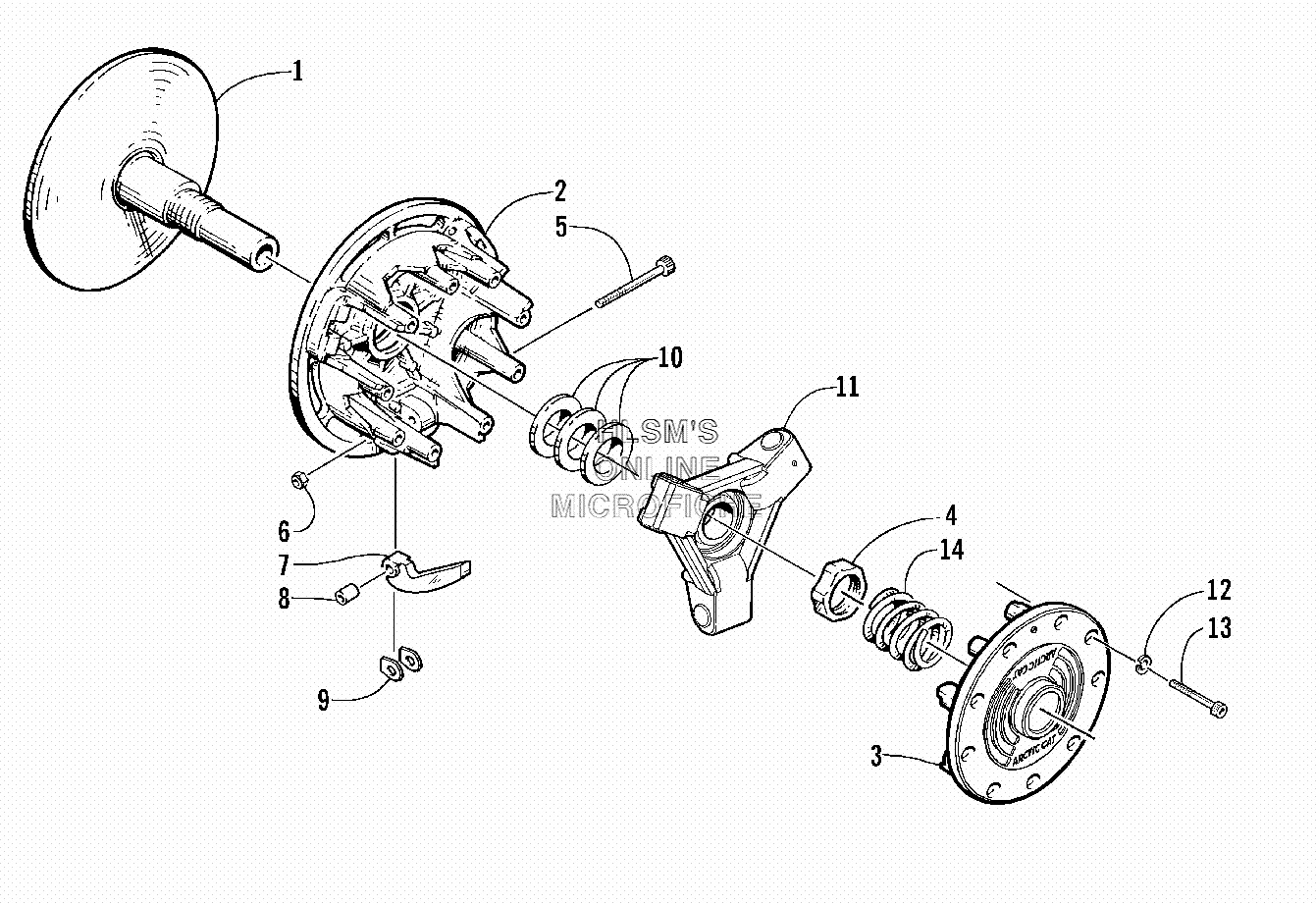

DRIVE CLUTCH для Arctic Cat ZRT 600 - 2002 года выпуска
-
№АртикулНазвание
-
-0725-323 CLUTCH, DRIVE ASSEMBLYCLUTCH, DRIVE ASSEMBLY
-
-1639-030 CAM ARM KIT (INC 5,6,8, AND 9)CAM ARM KIT (INC 5,6,8, AND 9)
-
-0746-103 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-325 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30746-086 COVERCOVER
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-539 ARM, CAM (INC 8)ARM, CAM (INC 8)
-
70746-587 ARM, CAM (INC 8) (5-9,000 FT ALT)ARM, CAM (INC 8) (5-9,000 FT ALT)
-
70746-611 ARM, CAM (INC 8) (OVER 9,000 FT ALT)ARM, CAM (INC 8) (OVER 9,000 FT ALT)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-098 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
128051-212 WASHER, LOCKWASHER, LOCK
-
130623-596 SCREW, MACHINESCREW, MACHINE
-
140646-147 SPRING, DRIVE CLUTCH - YELLOW/GREENSPRING, DRIVE CLUTCH - YELLOW/GREEN
-
140646-229 SPRING, DRIVE CLUTCH - YELLOW/WHITE (OVER 9,000 FT ALT)SPRING, DRIVE CLUTCH - YELLOW/WHITE (OVER 9,000 FT ALT)
