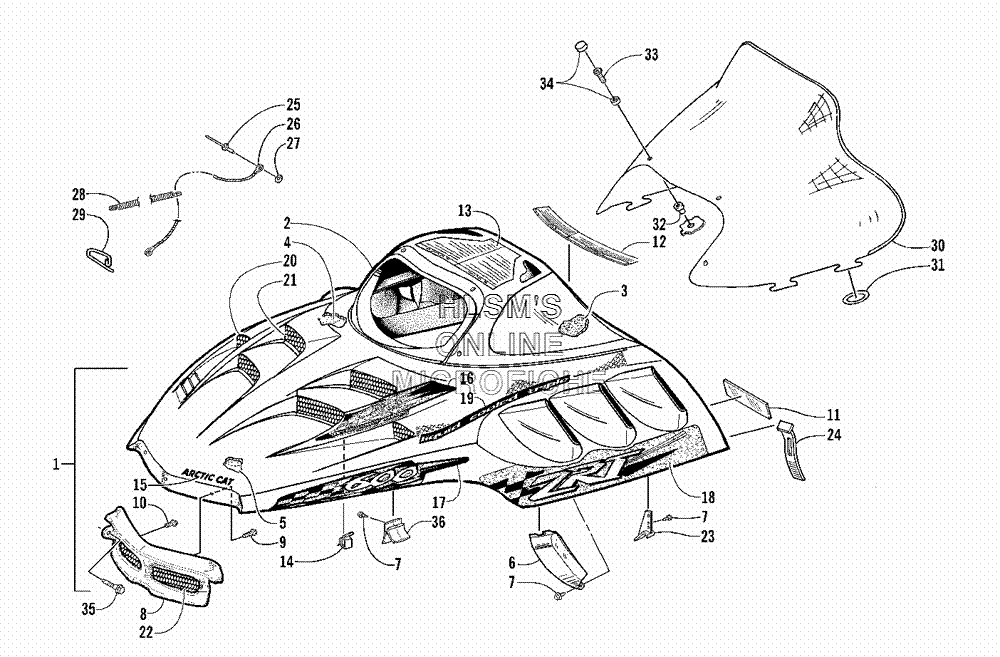

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZRT 600 - 2002 года выпуска
-
№АртикулНазвание
-
11718-116 HOOD W/DECALS (INC 2-19)HOOD W/DECALS (INC 2-19)
-
21718-117 HOOD W/O DECALS (INC 3-14)HOOD W/O DECALS (INC 3-14)
-
30717-112 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
30717-113 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
40717-136 FOAM - RIGHTFOAM - RIGHT
-
40717-137 FOAM - LEFTFOAM - LEFT
-
50619-206 TAPE, FOILTAPE, FOIL
-
61606-632 PLUG, VENT - RIGHTPLUG, VENT - RIGHT
-
61606-633 PLUG, VENT - LEFTPLUG, VENT - LEFT
-
70623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
82606-311 HINGE, HOODHINGE, HOOD
-
90623-790 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
100623-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
112611-769 DECAL, WARNING - SEATING CAPACITYDECAL, WARNING - SEATING CAPACITY
-
124611-010 DECAL, CAUTION - ENGINE/BATTERY/FUELDECAL, CAUTION - ENGINE/BATTERY/FUEL
-
133611-360 DECAL, WARNINGDECAL, WARNING
-
140123-394 CLIP, RETAININGCLIP, RETAINING
-
154611-150 DECAL, ''ARCTIC CAT'' - HOODDECAL, ''ARCTIC CAT'' - HOOD
-
164611-322 DECAL, ''APV'' - HOOD - RIGHTDECAL, ''APV'' - HOOD - RIGHT
-
164611-321 DECAL, ''APV'' - HOOD - LEFTDECAL, ''APV'' - HOOD - LEFT
-
174611-320 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
174611-319 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
184611-142 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
184611-141 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
194611-144 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
194611-143 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
201706-351 SCREEN, VENT - HOOD - RIGHT (SILVER)SCREEN, VENT - HOOD - RIGHT (SILVER)
-
201706-352 SCREEN, VENT - HOOD - LEFT (SILVER)SCREEN, VENT - HOOD - LEFT (SILVER)
-
211706-354 SCREEN, VENT - HOOD - CENTER RIGHT (SILVER)SCREEN, VENT - HOOD - CENTER RIGHT (SILVER)
-
211706-353 SCREEN, VENT - HOOD - CENTER LEFT (SILVER)SCREEN, VENT - HOOD - CENTER LEFT (SILVER)
-
221706-355 SCREEN, HOOD - HINGESCREEN, HOOD - HINGE
-
231606-321 GUIDE, HOODGUIDE, HOOD
-
241606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
258061-708 RIVETRIVET
-
260616-614 CABLE, HOODCABLE, HOOD
-
270123-802 WASHERWASHER
-
280123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
290115-528 HOOK, CABLEHOOK, CABLE
-
302606-439 WINDSHIELDWINDSHIELD
-
310616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
320623-845 NUT, EXPANSIONNUT, EXPANSION
-
330623-902 SCREW, MACHINESCREW, MACHINE
-
340124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
350623-777 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
361606-622 GUIDE, HOOD - FRONTGUIDE, HOOD - FRONT
