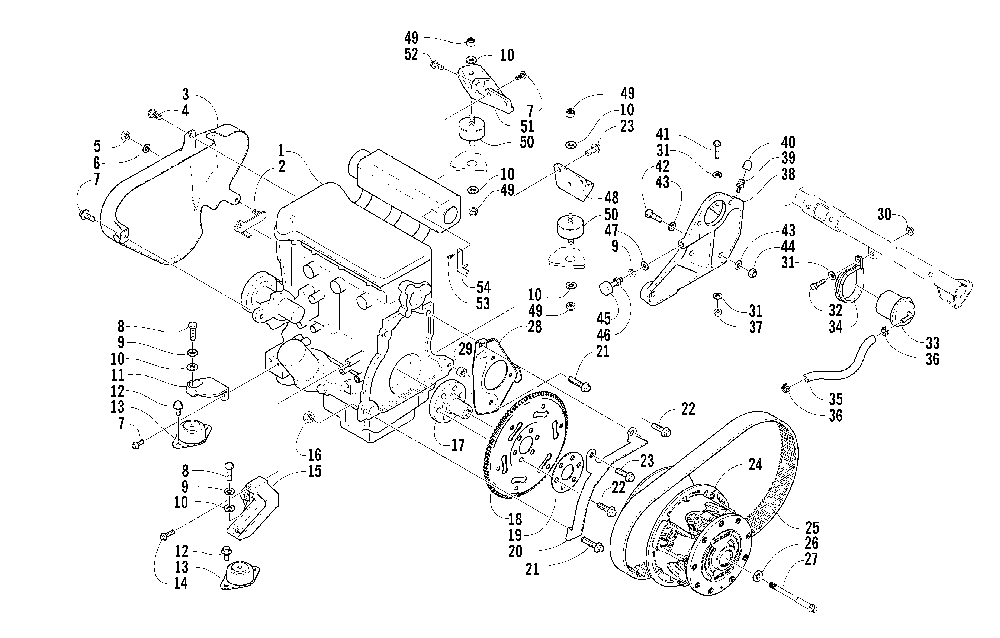

ENGINE AND RELATED PARTS для Arctic Cat 4-STROKE TRAIL - 2003 года выпуска
-
№АртикулНазвание
-
10662-327 ENGINE 660 L/CENGINE 660 L/C
-
21706-930 BRACKET, BELT COVERBRACKET, BELT COVER
-
32606-720 COVER, ENGINE BELTCOVER, ENGINE BELT
-
48408-616 SCREW, SHOULDERSCREW, SHOULDER
-
50624-250 NUT, LOCKNUT, LOCK
-
68050-217 WASHERWASHER
-
78408-820 SCREW, CAPSCREW, CAP
-
88002-221 SCREW, CAPSCREW, CAP
-
98051-277 WASHER, LOCKWASHER, LOCK
-
108050-277 WASHERWASHER
-
110708-125 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
120623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130608-347 MOUNT, ENGINE (FRONT)MOUNT, ENGINE (FRONT)
-
148408-850 SCREW, CAPSCREW, CAP
-
150708-394 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
168428-002 NUTNUT
-
171670-245 ADAPTER, PTOADAPTER, PTO
-
180745-192 GEAR, RINGGEAR, RING
-
190745-187 SPACERSPACER
-
200745-164 GUARD, RING GEARGUARD, RING GEAR
-
218409-040 SCREW, CAPSCREW, CAP
-
228409-030 SCREW, CAPSCREW, CAP
-
238409-020 SCREW, CAPSCREW, CAP
-
240725-377 CLUTCH, DRIVECLUTCH, DRIVE
-
250627-013 BELT, DRIVEBELT, DRIVE
-
260623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
270623-804 BOLT, DRIVE CLUTCHBOLT, DRIVE CLUTCH
-
280745-162 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
291623-063 BUSHINGBUSHING
-
301623-066 NUT, LOCKNUT, LOCK
-
318050-222 WASHERWASHER
-
328002-040 SCREW, CAPSCREW, CAP
-
331670-469 FILTER, FUELFILTER, FUEL
-
341623-134 CLAMP, FUEL FILTERCLAMP, FUEL FILTER
-
350610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
360610-419 CLAMP, HOSECLAMP, HOSE
-
378040-366 NUT, LOCKNUT, LOCK
-
380708-409 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 39, 40)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 39, 40)
-
390623-899 FITTING, GREASEFITTING, GREASE
-
400623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
418002-041 SCREW, CAPSCREW, CAP
-
428002-225 SCREW, CAPSCREW, CAP
-
430623-044 WASHERWASHER
-
440623-026 NUT, LOCKNUT, LOCK
-
450608-358 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
468042-516 NUTNUT
-
478050-282 WASHERWASHER
-
480708-128 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
498040-486 NUT, LOCKNUT, LOCK
-
500608-118 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
510708-126 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
528408-825 SCREW, CAPSCREW, CAP
-
538477-610 SCREW, CAPSCREW, CAP
-
542706-197 BRACKET, FILLER NECKBRACKET, FILLER NECK
