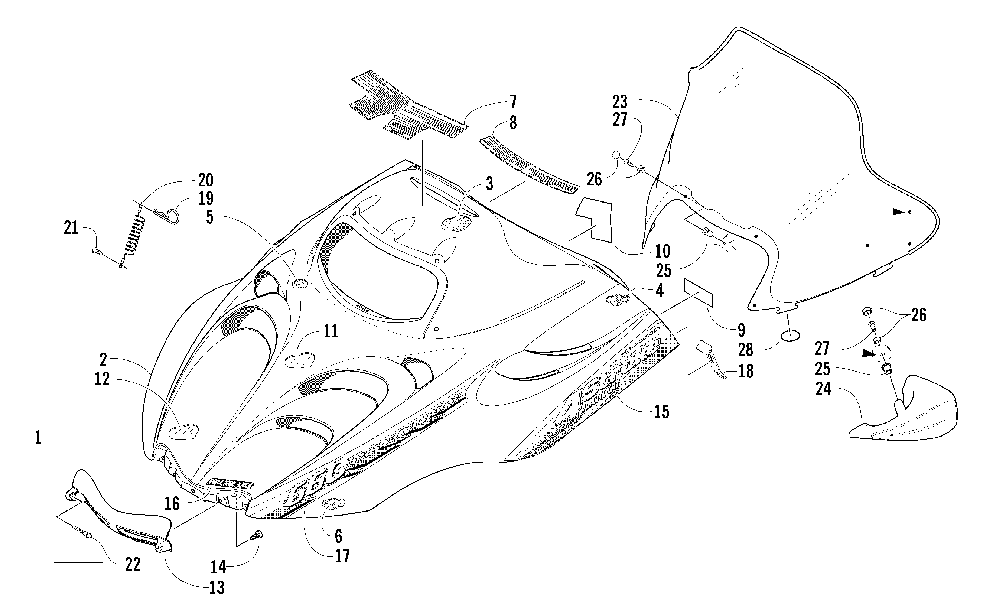

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat 4-STROKE TRAIL - 2003 года выпуска
-
№АртикулНазвание
-
11718-192 HOOD W/DECALS (GREEN) (INC. 2, 17)HOOD W/DECALS (GREEN) (INC. 2, 17)
-
21718-191 HOOD W/O DECALS (GREEN) (INC. 3, 14)HOOD W/O DECALS (GREEN) (INC. 3, 14)
-
30717-166 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
40717-140 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40717-141 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-146 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
60717-147 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
103611-580 DECAL REVERSEDECAL REVERSE
-
112606-935 FOIL, HOOD (CENTER)FOIL, HOOD (CENTER)
-
121606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
121606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
132606-454 HINGE, HOOD (GRAY)HINGE, HOOD (GRAY)
-
140623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
154611-792 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
154611-793 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
164611-799 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
174611-794 DECAL, HOOD (FRONT) (LEFT)DECAL, HOOD (FRONT) (LEFT)
-
174611-795 DECAL, HOOD (FRONT) (RIGHT)DECAL, HOOD (FRONT) (RIGHT)
-
181606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
190623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
202606-247 CABLE, HOODCABLE, HOOD
-
210623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220623-690 SCREW, MACHINESCREW, MACHINE
-
232606-713 WINDSHIELDWINDSHIELD
-
242639-477 MIRROR, KIT (INC. SIX NO. 25, 27)MIRROR, KIT (INC. SIX NO. 25, 27)
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
260124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280616-032 O-RINGO-RING
