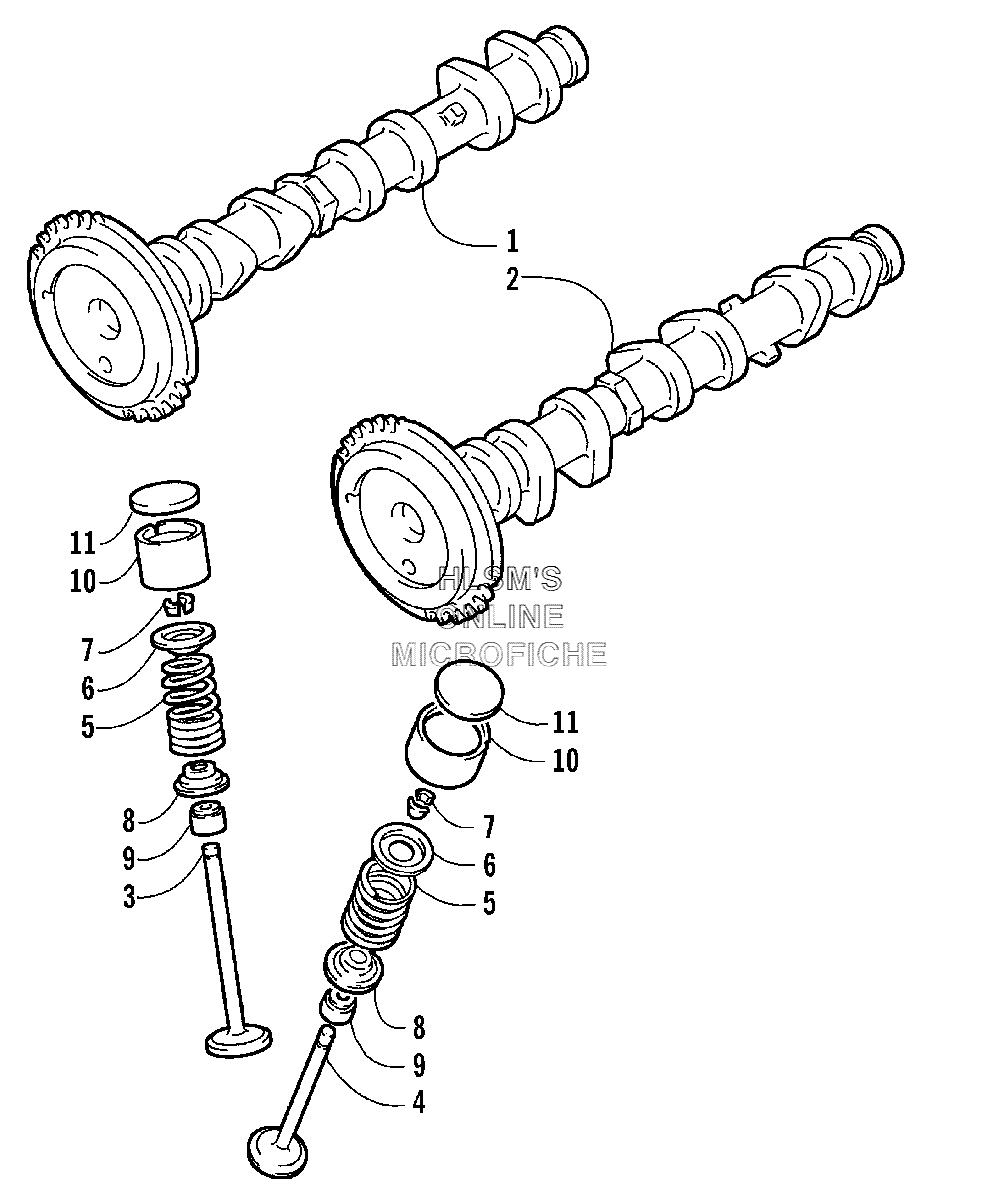

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
13006-574 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
23006-575 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
33006-198 VALVE, INTAKEVALVE, INTAKE
-
43006-199 VALVE, EXHAUSTVALVE, EXHAUST
-
53006-576 SPRING, VALVESPRING, VALVE
-
63006-201 RETAINERRETAINER
-
73006-202 COTTER, VALVECOTTER, VALVE
-
83006-203 SEAT, SPRINGSEAT, SPRING
-
93006-125 SEAL, VALVE STEMSEAL, VALVE STEM
-
103006-171 TAPPETTAPPET
-
113006-172 SHIM, TAPPET, 2.30 MMSHIM, TAPPET, 2.30 MM
-
113006-173 SHIM, TAPPET, 2.32 MMSHIM, TAPPET, 2.32 MM
-
113006-174 SHIM, TAPPET, 2.34 MMSHIM, TAPPET, 2.34 MM
-
113006-175 SHIM, TAPPET, 2.36 MMSHIM, TAPPET, 2.36 MM
-
113006-176 SHIM, TAPPET, 2.38 MMSHIM, TAPPET, 2.38 MM
-
113006-177 SHIM, TAPPET, 2.40 MMSHIM, TAPPET, 2.40 MM
-
113006-178 SHIM, TAPPET, 2.42 MMSHIM, TAPPET, 2.42 MM
-
113006-179 SHIM, TAPPET, 2.44 MMSHIM, TAPPET, 2.44 MM
-
113006-180 SHIM, TAPPET, 2.46 MMSHIM, TAPPET, 2.46 MM
-
113006-181 SHIM, TAPPET, 2.48 MMSHIM, TAPPET, 2.48 MM
-
113006-182 SHIM, TAPPET, 2.50 MMSHIM, TAPPET, 2.50 MM
-
113006-183 SHIM, TAPPET, 2.52 MMSHIM, TAPPET, 2.52 MM
-
113006-184 SHIM, TAPPET, 2.54 MMSHIM, TAPPET, 2.54 MM
-
113006-185 SHIM, TAPPET, 2.56 MMSHIM, TAPPET, 2.56 MM
-
113006-186 SHIM, TAPPET, 2.58 MMSHIM, TAPPET, 2.58 MM
-
113006-187 SHIM, TAPPET, 2.60 MMSHIM, TAPPET, 2.60 MM
-
113006-188 SHIM, TAPPET, 2.62 MMSHIM, TAPPET, 2.62 MM
-
113006-189 SHIM, TAPPET, 2.64 MMSHIM, TAPPET, 2.64 MM
-
113006-190 SHIM, TAPPET, 2.66 MMSHIM, TAPPET, 2.66 MM
-
113006-191 SHIM, TAPPET, 2.68 MMSHIM, TAPPET, 2.68 MM
-
113006-192 SHIM, TAPPET, 2.70 MMSHIM, TAPPET, 2.70 MM
-
113006-193 SHIM, TAPPET, 2.72 MMSHIM, TAPPET, 2.72 MM
-
113006-194 SHIM, TAPPET, 2.74 MMSHIM, TAPPET, 2.74 MM
-
113006-195 SHIM, TAPPET, 2.76 MMSHIM, TAPPET, 2.76 MM
-
113006-196 SHIM, TAPPET, 2.78 MMSHIM, TAPPET, 2.78 MM
-
113006-197 SHIM, TAPPET, 2.80 MMSHIM, TAPPET, 2.80 MM
