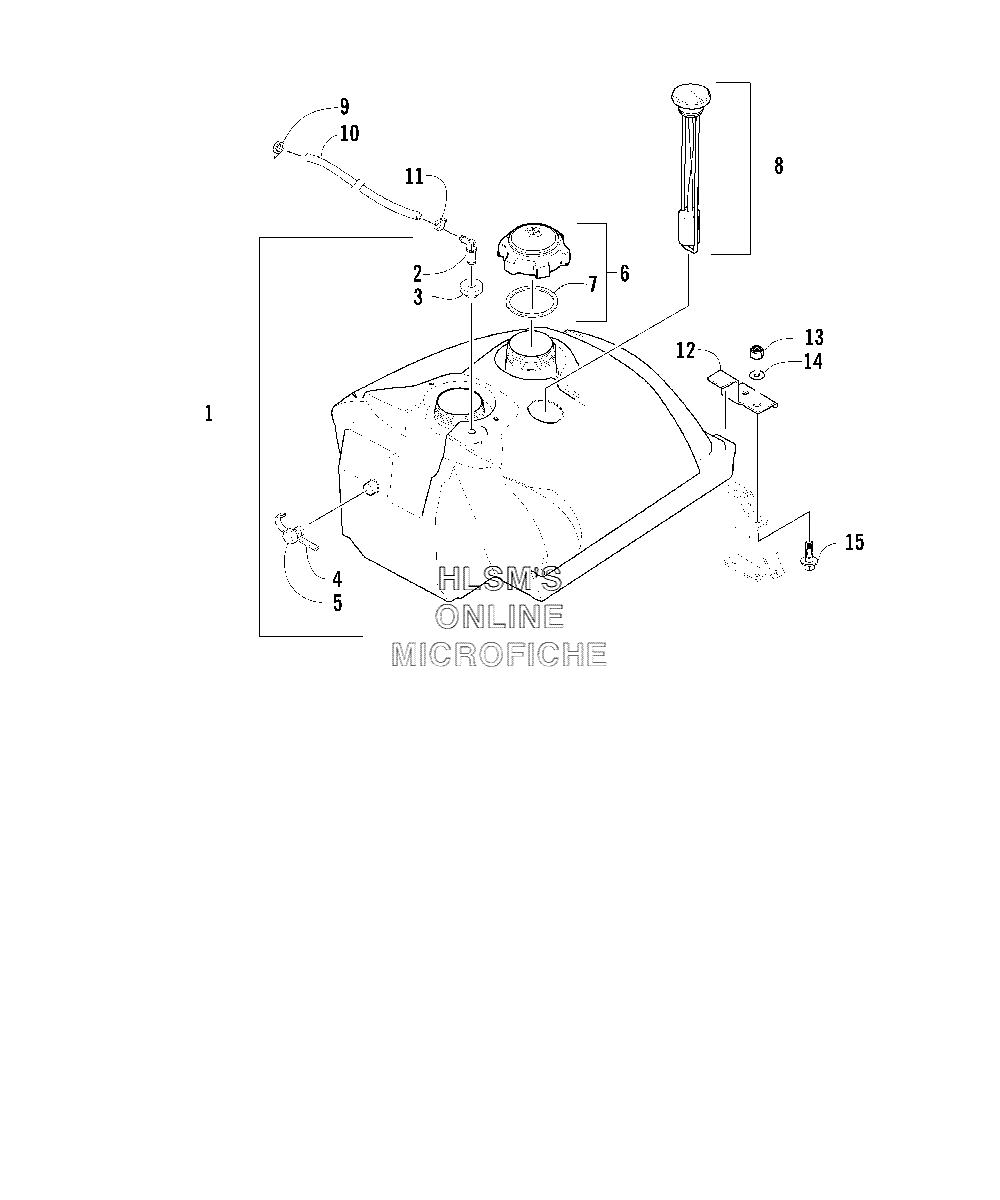

GAS TANK ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10770-624 TANK, GAS (INC. 2, 8)TANK, GAS (INC. 2, 8)
-
21670-494 VENT, GAS TANKVENT, GAS TANK
-
31670-325 GROMMETGROMMET
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
50670-243 PLUG, TANKPLUG, TANK
-
61670-199 CAP, GAS TANK (INC. 7)CAP, GAS TANK (INC. 7)
-
71670-228 SEAL, TANK CAPSEAL, TANK CAP
-
81670-524 GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)
-
90623-101 CLIP, ROUTINGCLIP, ROUTING
-
100610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
100610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
110623-063 CLAMP, HOSECLAMP, HOSE
-
110623-063 CLAMP, HOSECLAMP, HOSE
-
122706-168 BRACKET, HOLD, DOWN, GAS TANK (RIGHT)BRACKET, HOLD, DOWN, GAS TANK (RIGHT)
-
122706-169 BRACKET, HOLD, DOWN, GAS TANK (LEFT)BRACKET, HOLD, DOWN, GAS TANK (LEFT)
-
138040-426 NUT, LOCKNUT, LOCK
-
148050-247 WASHERWASHER
-
158020-130 SCREW, CAPSCREW, CAP
