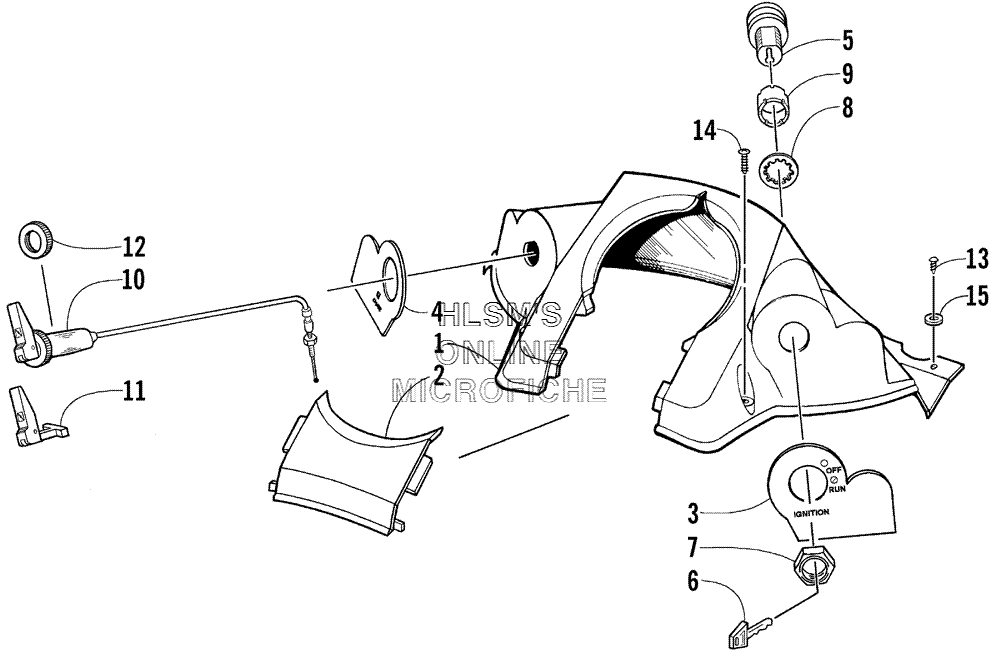

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat PANTHER 370 R - 2003 года выпуска
-
№АртикулНазвание
-
12606-060 CONSOLECONSOLE
-
22606-068 DOOR, CONSOLE (GREEN)DOOR, CONSOLE (GREEN)
-
32611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-286 SWITCH, IGNITION (INC. 6)SWITCH, IGNITION (INC. 6)
-
70609-113 NUT, IGNITIONNUT, IGNITION
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
100687-085 CABLE, CHOKE (INC. 11, 12)CABLE, CHOKE (INC. 11, 12)
-
110636-062 CHOKE LEVER KITCHOKE LEVER KIT
-
120623-054 NUT, CHOKENUT, CHOKE
-
130623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-157 WASHERWASHER
