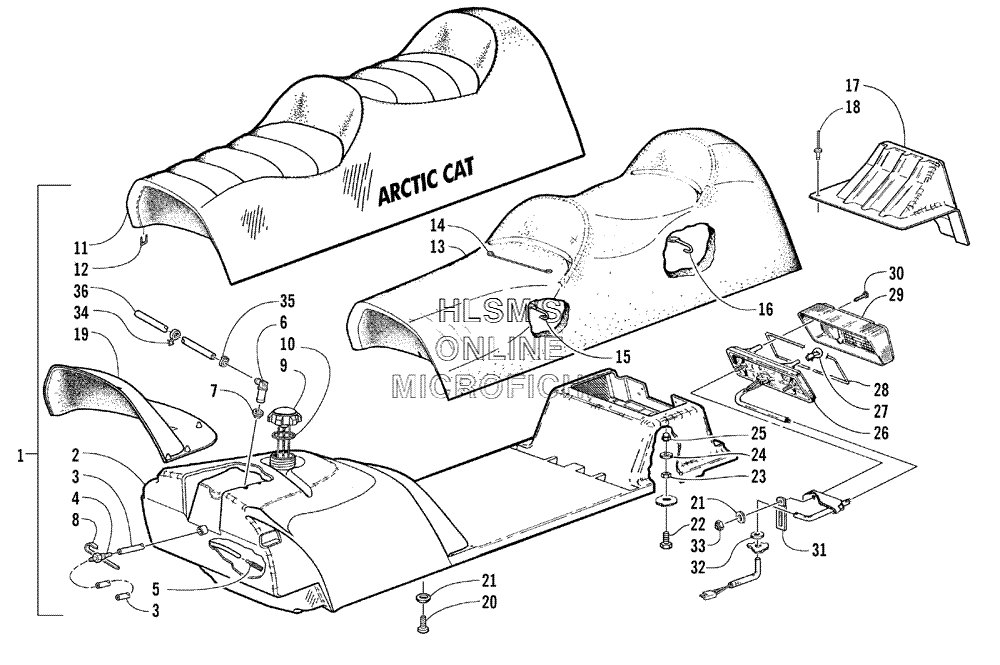

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 370 R - 2003 года выпуска
-
№АртикулНазвание
-
11718-357 COMPLETE SEAT ASSY (INC. 2, 20 AND TWO NO. 21)COMPLETE SEAT ASSY (INC. 2, 20 AND TWO NO. 21)
-
20770-556 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
36101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
36101-009 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
40670-042 OUTLET, TANKOUTLET, TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
71670-325 GROMMETGROMMET
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-658 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 SEAL, TANK CAPSEAL, TANK CAP
-
112706-106 COVER, SEATCOVER, SEAT
-
120624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
130716-991 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
141606-150 WIRE, SEATWIRE, SEAT
-
152606-943 WIRE, SEATWIRE, SEAT
-
162606-942 WIRE, SEATWIRE, SEAT
-
171606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
180623-853 RIVETRIVET
-
191606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
200623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
218050-217 WASHERWASHER
-
228002-040 SCREW, CAPSCREW, CAP
-
238041-366 NUT, LOCKNUT, LOCK
-
240623-184 WASHERWASHER
-
250123-108 NUT, CAPNUT, CAP
-
260609-091 TAILLIGHT W/SOCKET ASSYTAILLIGHT W/SOCKET ASSY
-
270109-460 BULBBULB
-
280609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
290609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
300609-093 SCREW, RETAININGSCREW, RETAINING
-
313002-964 CLAMP, WIRECLAMP, WIRE
-
320617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
330623-038 NUT W/WASHERNUT W/WASHER
-
340623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
350623-063 CLAMP, HOSECLAMP, HOSE
-
360610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
360610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
