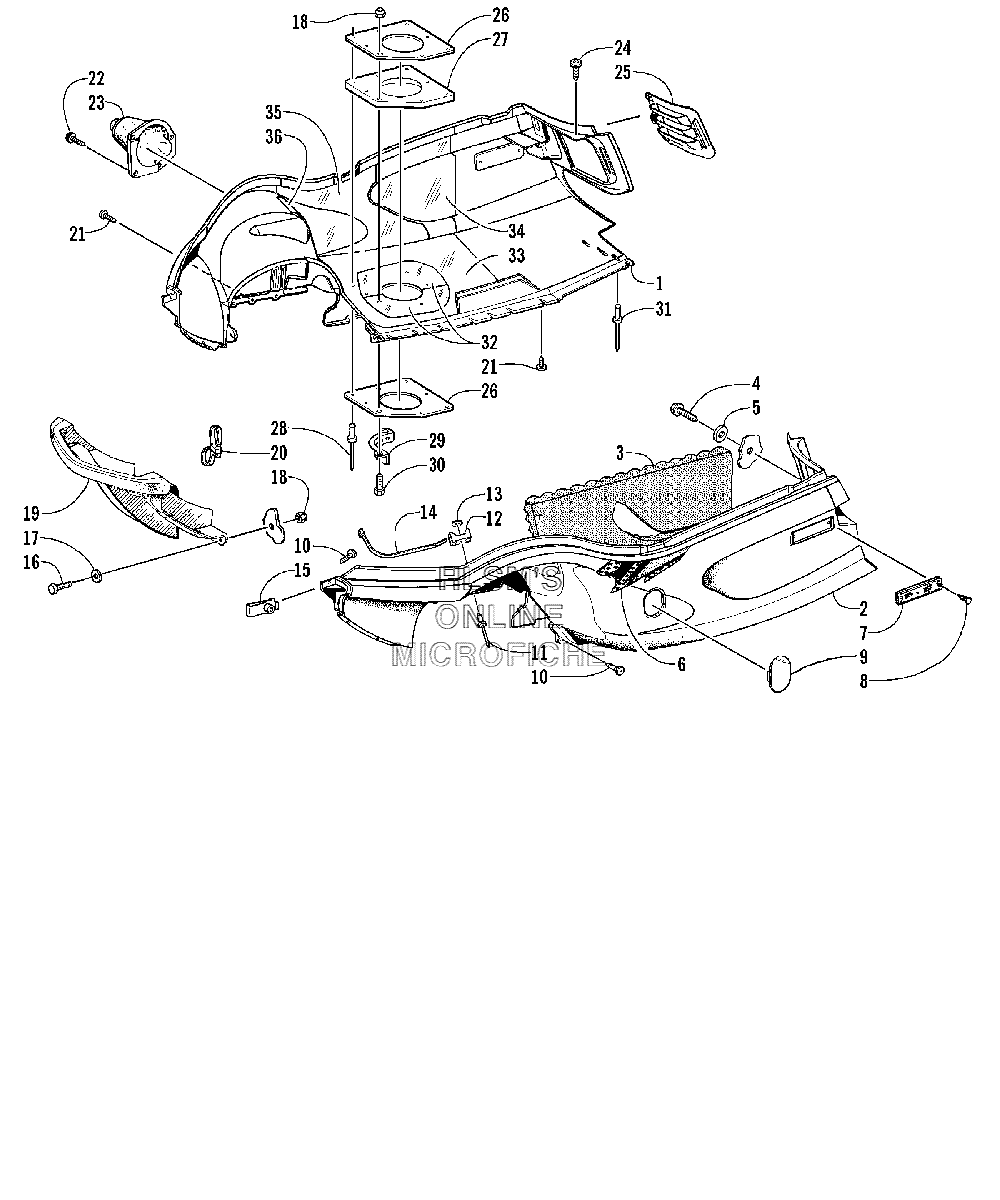

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Z 570 (ESR) - 2003 года выпуска
-
№АртикулНазвание
-
11706-846 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
64611-694 DECAL, BELLY PAN (RIGHT) (ESR)DECAL, BELLY PAN (RIGHT) (ESR)
-
64611-695 DECAL, BELLY PAN (LEFT) (ESR)DECAL, BELLY PAN (LEFT) (ESR)
-
70606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
91606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118060-506 RIVETRIVET
-
120623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
130123-149 WASHERWASHER
-
140123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
150623-427 NUT, UNUT, U
-
168002-041 SCREW, CAPSCREW, CAP
-
178050-222 WASHERWASHER
-
188040-366 NUT, LOCKNUT, LOCK
-
192606-224 BUMPER (FRONT)BUMPER (FRONT)
-
200623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
210623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
230605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
240623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
251606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
251606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
260712-939 SHIELD, EXHAUSTSHIELD, EXHAUST
-
271612-514 SEAL, EXHAUSTSEAL, EXHAUST
-
288060-508 RIVETRIVET
-
290712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
308002-040 SCREW, CAPSCREW, CAP
-
318061-508 RIVETRIVET
-
320619-206 TAPE, FOILTAPE, FOIL
-
332606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
342606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
352606-376 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
362606-387 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
