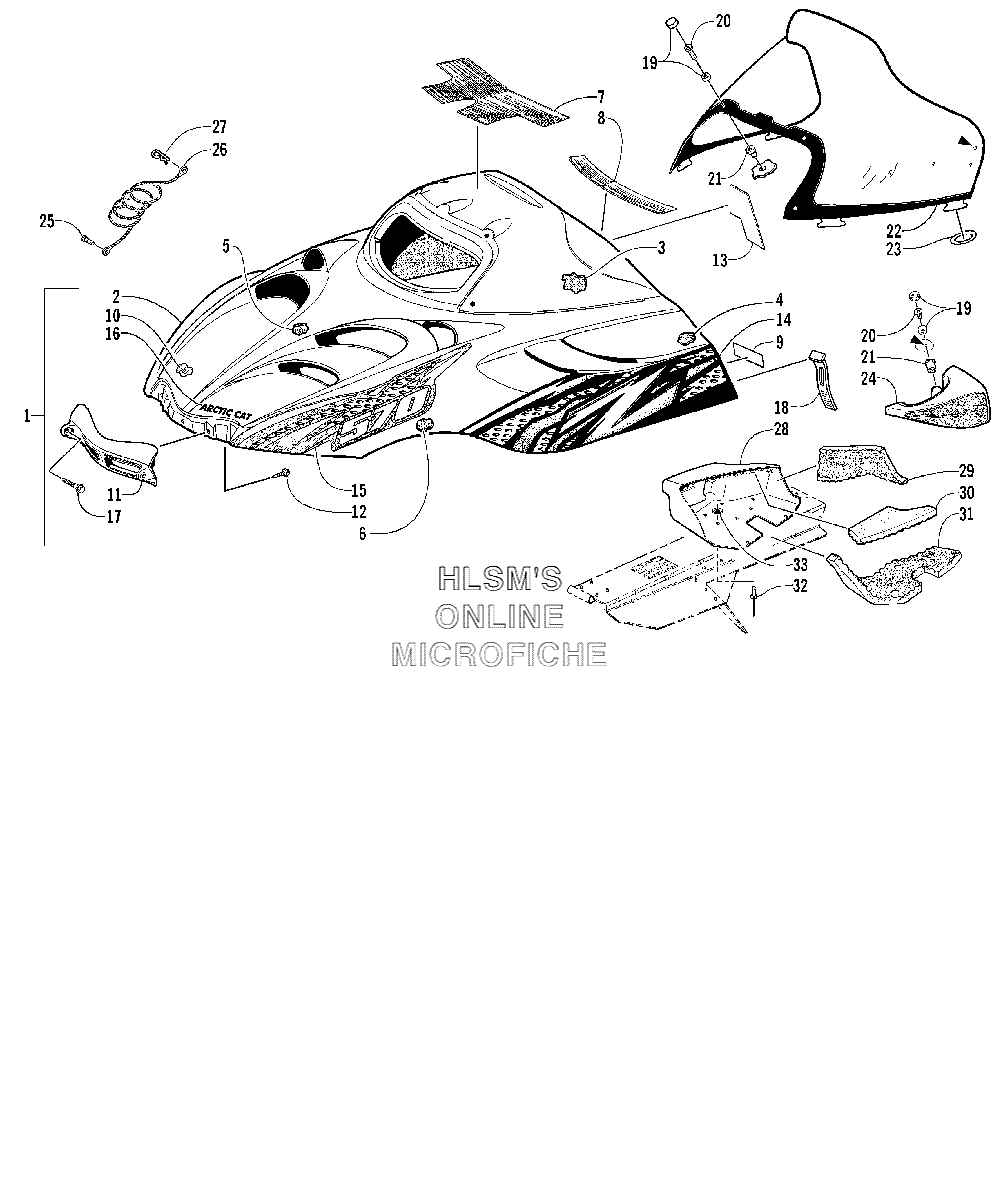

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 570 (ESR) - 2003 года выпуска
-
№АртикулНазвание
-
11718-318 HOOD W/DECALS (BLACK) (INC. 2, 16) (ESR)HOOD W/DECALS (BLACK) (INC. 2, 16) (ESR)
-
21718-271 HOOD W/O DECALS (BLACK) (INC. 3, 13) (ESR)HOOD W/O DECALS (BLACK) (INC. 3, 13) (ESR)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60617-327 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
133611-580 DECAL REVERSEDECAL REVERSE
-
144611-688 DECAL, HOOD (LOWER/RIGHT) (ESR)DECAL, HOOD (LOWER/RIGHT) (ESR)
-
144611-689 DECAL, HOOD (LOWER/LEFT) (ESR)DECAL, HOOD (LOWER/LEFT) (ESR)
-
154611-700 DECAL, HOOD (UPPER/RIGHT) (ESR)DECAL, HOOD (UPPER/RIGHT) (ESR)
-
154611-701 DECAL, HOOD (UPPER/LEFT) (ESR)DECAL, HOOD (UPPER/LEFT) (ESR)
-
164611-470 DECAL, "ARCTIC CAT", HOOD (ESR)DECAL, "ARCTIC CAT", HOOD (ESR)
-
170623-690 SCREW, MACHINESCREW, MACHINE
-
181606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
190124-054 SNAP CAP W/WASHER (ESR)SNAP CAP W/WASHER (ESR)
-
200623-902 SCREW, MACHINE (ESR)SCREW, MACHINE (ESR)
-
210623-845 NUT, EXPANSION (ESR)NUT, EXPANSION (ESR)
-
222606-366 WINDSHIELD (ESR)WINDSHIELD (ESR)
-
230616-032 O-RINGO-RING
-
242639-477 KIT, MIRROR (INC. SIX NO. 19, 21) (ESR)KIT, MIRROR (INC. SIX NO. 19, 21) (ESR)
-
250623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
262606-247 CABLE, HOODCABLE, HOOD
-
270623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
282606-370 DUCT, AIR, OUTERDUCT, AIR, OUTER
-
290617-428 FOAM, AIR, OUTER DUCT, SIDEFOAM, AIR, OUTER DUCT, SIDE
-
300617-427 FOAM, AIR, OUTER DUCT, TOPFOAM, AIR, OUTER DUCT, TOP
-
310617-425 FOAM, AIR, OUTER DUCT, BOTTOMFOAM, AIR, OUTER DUCT, BOTTOM
-
328060-508 RIVETRIVET
-
330123-802 WASHERWASHER
