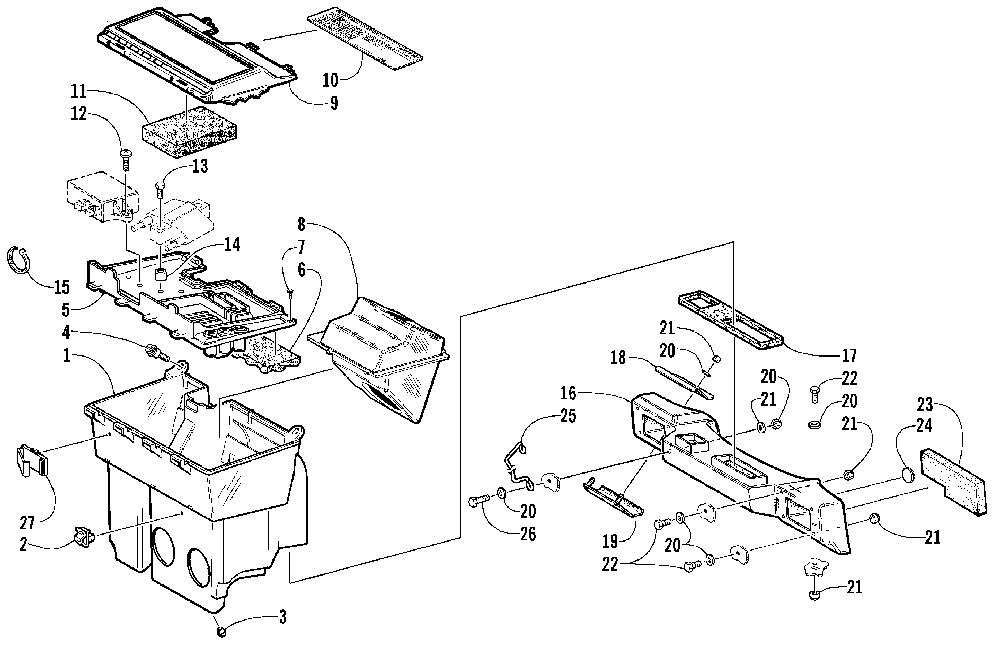

AIR SILENCER ASSEMBLY для Arctic Cat Z 570 - 2003 года выпуска
-
№АртикулНазвание
-
10770-579 SILENCER, AIR, ASSEMBLYSILENCER, AIR, ASSEMBLY
-
20623-403 CLAMP, PUSH, MOUNTCLAMP, PUSH, MOUNT
-
31606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
40623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
51670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-393 FOAM, COVER, AIR SILENCERFOAM, COVER, AIR SILENCER
-
70623-882 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
81670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
91670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
104611-913 DECAL, JET CHARTDECAL, JET CHART
-
110617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
120623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130623-835 SCREW, MACHINESCREW, MACHINE
-
140107-630 SPACERSPACER
-
150123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
161670-327 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
170617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
182606-095 PLATE, BACKINGPLATE, BACKING
-
191706-899 PLATE, ADJUSTINGPLATE, ADJUSTING
-
208050-222 WASHERWASHER
-
218040-366 NUT, LOCKNUT, LOCK
-
228002-040 SCREW, CAPSCREW, CAP
-
230617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
240623-078 DISC, VELCRODISC, VELCRO
-
250707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
268002-042 SCREW, CAPSCREW, CAP
-
270623-792 CLIP, WIRECLIP, WIRE
