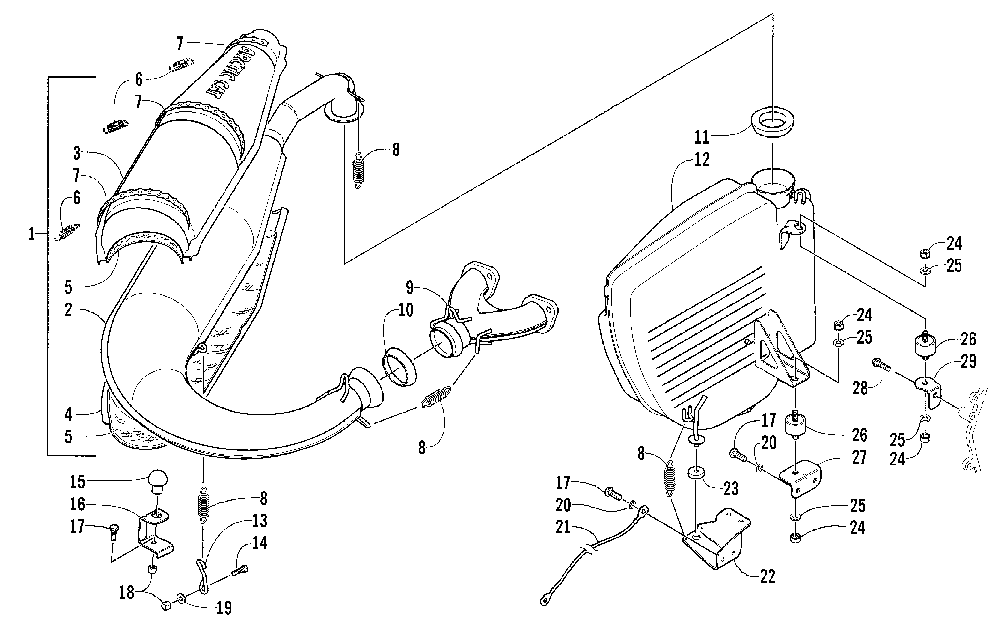

EXHAUST ASSEMBLY для Arctic Cat Z 570 - 2003 года выпуска
-
№АртикулНазвание
-
10712-734 EXPANSION CHAMBER ASSEMBLY (INC. 2, 7)EXPANSION CHAMBER ASSEMBLY (INC. 2, 7)
-
20712-732 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-436 COVER (UPPER)COVER (UPPER)
-
41612-435 COVER (LOWER)COVER (LOWER)
-
51612-550 INSULATIONINSULATION
-
61612-178 SPRING, EXTENSIONSPRING, EXTENSION
-
70624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
70624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
80612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
90712-733 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
111612-066 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
120712-742 RESONATORRESONATOR
-
130712-913 BRACKET, WIREFORMBRACKET, WIREFORM
-
148002-042 SCREW, CAPSCREW, CAP
-
150612-111 BUMPER, RUBBERBUMPER, RUBBER
-
161612-508 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
178002-040 SCREW, CAPSCREW, CAP
-
188040-366 NUT, LOCKNUT, LOCK
-
198050-217 WASHERWASHER
-
208051-217 WASHER, LOCKWASHER, LOCK
-
210686-126 WIRE, GROUNDWIRE, GROUND
-
220712-834 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
231612-319 BUSHING, STEM, RESONATOR MOUNTINGBUSHING, STEM, RESONATOR MOUNTING
-
240623-961 NUT, HEX W/WASHERNUT, HEX W/WASHER
-
258050-242 WASHERWASHER
-
261612-321 SUPPORT, RESONATORSUPPORT, RESONATOR
-
270712-916 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
288020-134 SCREW, CAPSCREW, CAP
-
290712-938 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
