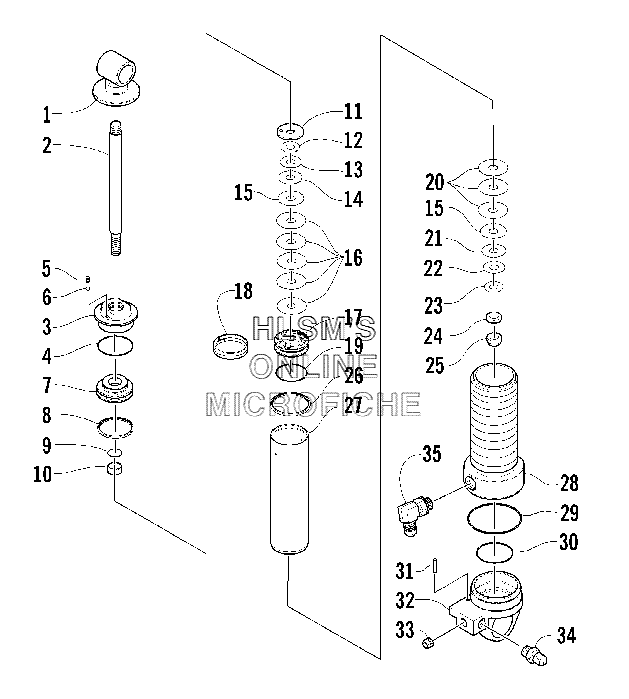

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Arctic Cat 440 Sno Pro (International) - 2004 года выпуска
-
№АртикулНазвание
-
-1704-188 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-529 ROD, SHOCKROD, SHOCK
-
32604-568 CAP, SHOCK (INC. 4)CAP, SHOCK (INC. 4)
-
41604-420 O-RINGO-RING
-
51603-940 SCREWSCREW
-
61604-315 BALL, ADJUSTERBALL, ADJUSTER
-
71704-262 PISTON, SEPARATORPISTON, SEPARATOR
-
80603-447 O-RINGO-RING
-
92604-213 O-RINGO-RING
-
102604-203 BEARINGBEARING
-
110603-540 WASHER, TOP OUTWASHER, TOP OUT
-
120603-879 VALVE, SHOCK 0.800 X 0.012 IN.VALVE, SHOCK 0.800 X 0.012 IN.
-
130603-880 VALVE, SHOCK 0.900 X 0.012 IN.VALVE, SHOCK 0.900 X 0.012 IN.
-
140603-887 VALVE, SHOCK 1.000 X 0.015 IN.VALVE, SHOCK 1.000 X 0.015 IN.
-
150603-882 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
160603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
172604-465 PISTON, 0.046 IN., ORIFICEPISTON, 0.046 IN., ORIFICE
-
180603-292 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
192604-214 O-RINGO-RING
-
200603-347 VALVE, SHOCK 1.250 X 0.010 IN.VALVE, SHOCK 1.250 X 0.010 IN.
-
210603-881 VALVE, SHOCK 1.000 X 0.012 IN.VALVE, SHOCK 1.000 X 0.012 IN.
-
220603-338 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
230603-335 VALVE, SHOCK 0.800 X 0.010 IN.VALVE, SHOCK 0.800 X 0.010 IN.
-
240603-389 WASHER, BACKUPWASHER, BACKUP
-
250603-301 NUT, CAPNUT, CAP
-
260604-810 O-RINGO-RING
-
272604-220 BODY, SHOCKBODY, SHOCK
-
282604-443 SLEEVE, ADJUSTERSLEEVE, ADJUSTER
-
290604-809 O-RINGO-RING
-
300603-438 O-RINGO-RING
-
311604-097 PIN, ROLL, SPRINGPIN, ROLL, SPRING
-
322604-523 END CAP, SHOCKEND CAP, SHOCK
-
332604-207 PLUG, BRASSPLUG, BRASS
-
342603-206 FITTING, STRAIGHTFITTING, STRAIGHT
-
352603-205 FITTING, ELBOWFITTING, ELBOW
