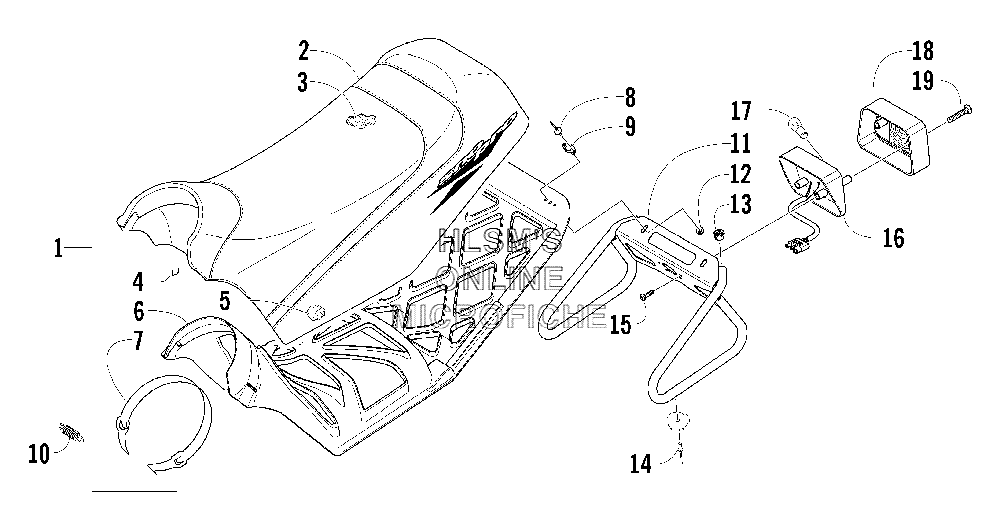

SEAT ASSEMBLY для Arctic Cat Arctic Cat 440 Sno Pro (International) - 2004 года выпуска
-
№АртикулНазвание
-
17997-878 COMPLETE SEAT ASSEMBLY (INC. 2, 9)COMPLETE SEAT ASSEMBLY (INC. 2, 9)
-
22706-591 COVER, SEATCOVER, SEAT
-
30717-194 FOAM, SEAT (UPPER)FOAM, SEAT (UPPER)
-
40624-528 STAPLESTAPLE
-
50617-461 FOAM, SEAT (LOWER)FOAM, SEAT (LOWER)
-
63606-452 BASE, SEATBASE, SEAT
-
72706-768 STRAP, HOLD, DOWN, SEATSTRAP, HOLD, DOWN, SEAT
-
88061-508 RIVETRIVET
-
92706-040 HOLD, DOWN, SEATHOLD, DOWN, SEAT
-
103606-549 SPRING, SEAT HOLD, DOWN STRAPSPRING, SEAT HOLD, DOWN STRAP
-
112706-684 SUBFRAME, SEATSUBFRAME, SEAT
-
128047-366 NUT, LOCKNUT, LOCK
-
130606-654 PLUG, HOLEPLUG, HOLE
-
141623-130 RIVETRIVET
-
151623-251 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160609-664 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
170109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
180609-665 LENS, TAILLIGHTLENS, TAILLIGHT
-
190609-666 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
