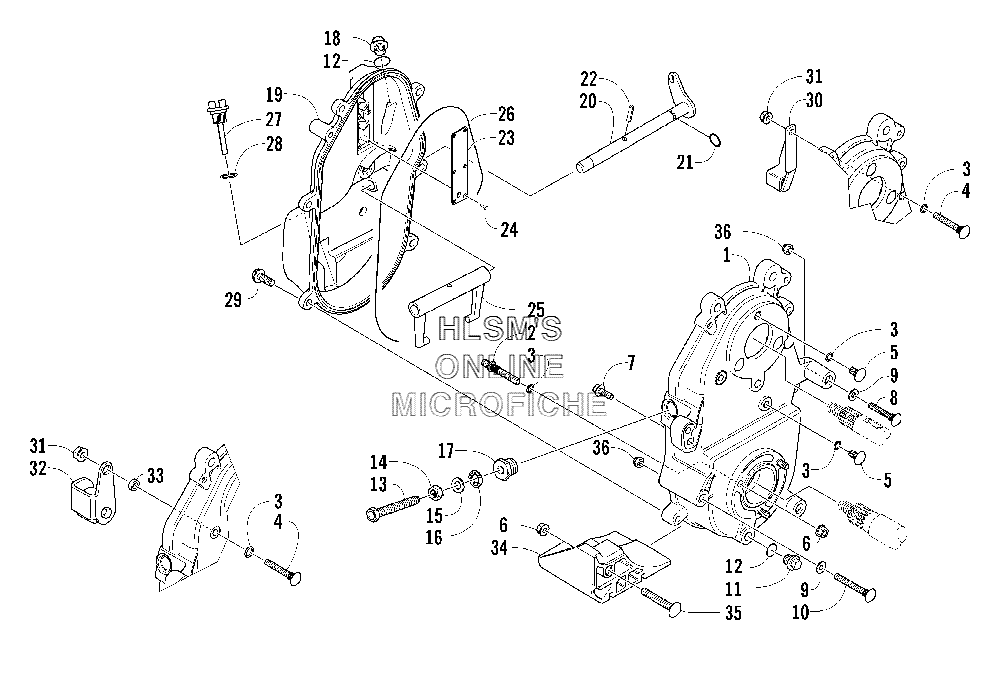

DROPCASE AND CHAIN TENSION ASSEMBLY для Arctic Cat Bearcat 570 (International) - 2004 года выпуска
-
№АртикулНазвание
-
10702-417 DROPCASE W/STUDS (INC. 2, 5)DROPCASE W/STUDS (INC. 2, 5)
-
20623-317 STUD, RIBBEDSTUD, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
68048-426 NUT, LOCKNUT, LOCK
-
78020-135 SCREW, CAPSCREW, CAP
-
88011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
98050-252 WASHERWASHER
-
101623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
110602-479 PLUG, DRAIN, MAGNETICPLUG, DRAIN, MAGNETIC
-
121602-213 O-RINGO-RING
-
131602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
140123-150 NUTNUT
-
158050-272 WASHERWASHER
-
160623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
170602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
180623-293 PLUG, DRAINPLUG, DRAIN
-
190702-442 COVER, DROPCASECOVER, DROPCASE
-
200702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
210602-021 SEAL, O-RINGSEAL, O-RING
-
220623-542 PIN, SPRINGPIN, SPRING
-
231602-151 COVER, OIL VENTCOVER, OIL VENT
-
240623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
250602-085 FORK, SHIFTFORK, SHIFT
-
260602-437 SEAL, DROPCASESEAL, DROPCASE
-
270602-483 STICK, OIL LEVELSTICK, OIL LEVEL
-
280670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
298020-134 SCREW, CAPSCREW, CAP
-
300702-554 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
318048-366 NUT, LOCKNUT, LOCK
-
320702-397 ARM, TIGHTENER, ASSYARM, TIGHTENER, ASSY
-
330602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
340616-964 GUARD, DROPCASEGUARD, DROPCASE
-
358011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
368040-426 NUT, LOCKNUT, LOCK
