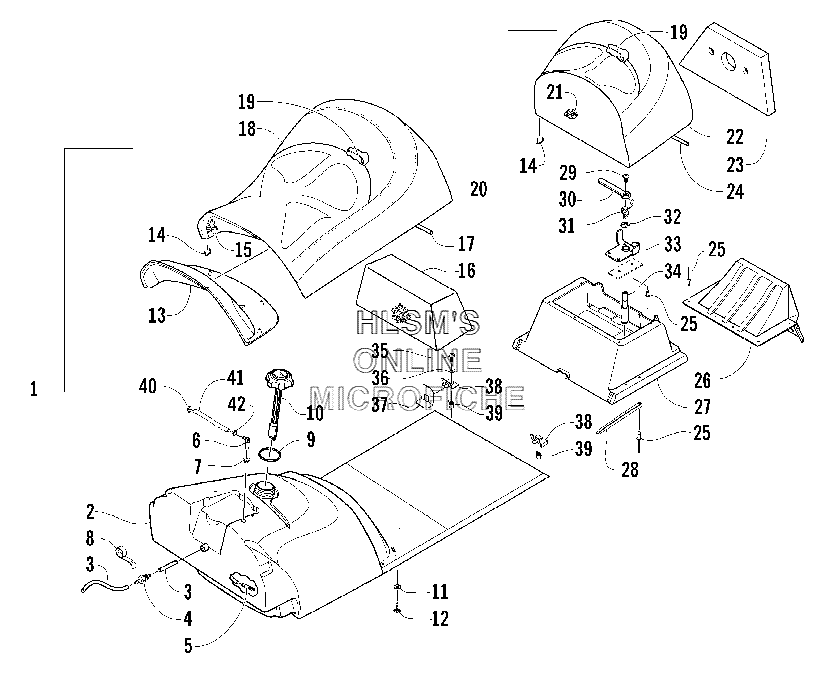

GAS TANK AND SEAT ASSEMBLY для Arctic Cat Bearcat 570 (International) - 2004 года выпуска
-
№АртикулНазвание
-
11718-590 COMPLETE SEAT ASSY (INC. 2, 18 AND ONE NO. 19)COMPLETE SEAT ASSY (INC. 2, 18 AND ONE NO. 19)
-
20770-670 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
36101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
36101-009 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
40670-042 OUTLET, TANKOUTLET, TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
71670-325 GROMMETGROMMET
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-658 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 SEAL, TANK CAPSEAL, TANK CAP
-
118050-217 WASHERWASHER
-
120623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
131606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
140624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
152706-611 FOAM, SEAT CUSHION (FRONT)FOAM, SEAT CUSHION (FRONT)
-
162606-133 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
172606-943 WIRE, SEATWIRE, SEAT
-
182706-391 COVER, SEAT (FRONT) (INC. ONE NO. 19)COVER, SEAT (FRONT) (INC. ONE NO. 19)
-
193606-363 WIRE, SEATWIRE, SEAT
-
201718-591 COMPLETE SEAT ASSY, PASSENGER (INC. 14, ONE NO. 19, AND 21, 34)COMPLETE SEAT ASSY, PASSENGER (INC. 14, ONE NO. 19, AND 21, 34)
-
211706-159 FOAM, SEAT, PASSENGERFOAM, SEAT, PASSENGER
-
222706-392 COVER, SEAT, PASSENGER (INC. ONE NO. 19)COVER, SEAT, PASSENGER (INC. ONE NO. 19)
-
230617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
242606-942 WIRE, SEATWIRE, SEAT
-
250623-853 RIVETRIVET
-
261606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
273606-238 SEAT, BASE, PASSENGERSEAT, BASE, PASSENGER
-
282606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)BRACKET, HOLD, DOWN, SEAT (RIGHT)
-
282606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)BRACKET, HOLD, DOWN, SEAT (LEFT)
-
298017-397 SCREW, MACHINESCREW, MACHINE
-
303606-171 LEVER, SEAT LATCHLEVER, SEAT LATCH
-
310623-610 SPRING, LEVERSPRING, LEVER
-
320602-051 E, RINGE, RING
-
332706-535 BRACKET, SEAT LATCHBRACKET, SEAT LATCH
-
343606-172 STUD, LATCHSTUD, LATCH
-
358017-580 SCREW, MACHINESCREW, MACHINE
-
368050-222 WASHERWASHER
-
372606-268 GUARD, SEAT (RIGHT)GUARD, SEAT (RIGHT)
-
372606-269 GUARD, SEAT (LEFT)GUARD, SEAT (LEFT)
-
382706-134 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
-
382706-135 BRACKET, HOLD, DOWN, RECEIVER (LEFT)BRACKET, HOLD, DOWN, RECEIVER (LEFT)
-
390623-582 INSERTINSERT
-
400623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
410610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
410610-016 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
420623-063 CLAMP, HOSECLAMP, HOSE
