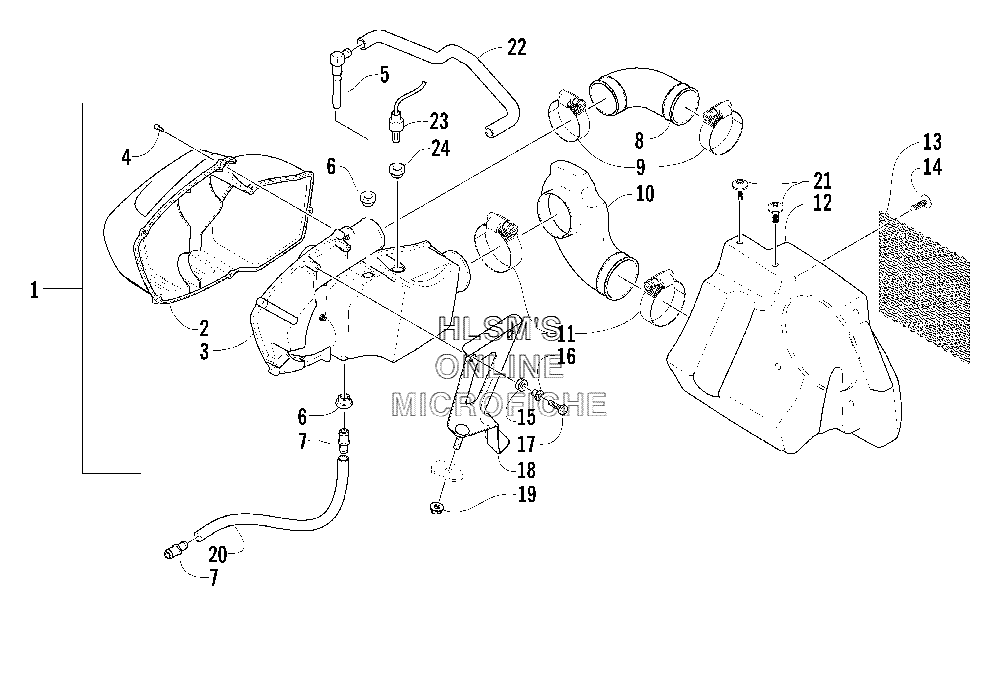

AIR SILENCER ASSEMBLY для Arctic Cat Bearcat Wide Track (International) - 2004 года выпуска
-
№АртикулНазвание
-
10770-605 SILENCER, AIR, ASSY (INC. 2, 6 AND ONE NO. 7)SILENCER, AIR, ASSY (INC. 2, 6 AND ONE NO. 7)
-
21670-434 COVER (OUTER)COVER (OUTER)
-
30770-621 COVER (INNER)COVER (INNER)
-
48019-397 SCREW, CAPSCREW, CAP
-
51670-515 FITTING, ELBOWFITTING, ELBOW
-
61670-507 GROMMETGROMMET
-
71670-516 FITTING, STRAIGHTFITTING, STRAIGHT
-
80610-491 TUBE (OUTLET)TUBE (OUTLET)
-
90214-027 CLAMP, HOSECLAMP, HOSE
-
101670-483 TUBE (INLET)TUBE (INLET)
-
110214-032 CLAMP, TUBECLAMP, TUBE
-
121670-466 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
131670-468 SCREEN, PLENUMSCREEN, PLENUM
-
140623-165 CLIP, RETAININGCLIP, RETAINING
-
151670-545 ISOLATOR, RUBBERISOLATOR, RUBBER
-
160607-737 BUSHINGBUSHING
-
171623-135 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180707-737 BRACKET, MOUNTING, AIR SILENCERBRACKET, MOUNTING, AIR SILENCER
-
198048-486 NUT, LOCKNUT, LOCK
-
200610-529 HOSE, DRAINHOSE, DRAIN
-
218017-579 SCREW, MACHINESCREW, MACHINE
-
220610-489 HOSE, BREATHERHOSE, BREATHER
-
233006-656 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
243006-657 GROMMETGROMMET
