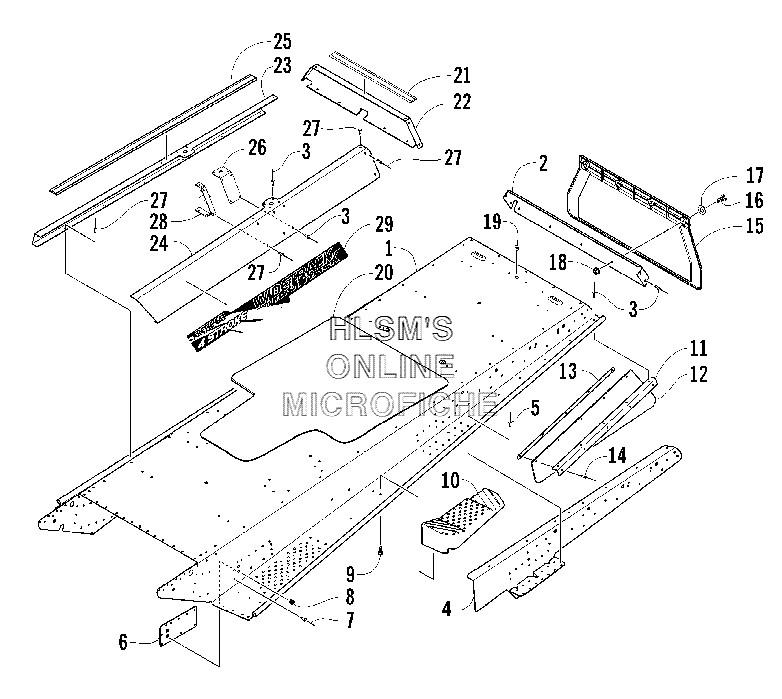

TUNNEL ASSEMBLY для Arctic Cat Bearcat Wide Track (International) - 2004 года выпуска
-
№АртикулНазвание
-
11718-362 TUNNEL ASSY (INC. 2, 5)TUNNEL ASSY (INC. 2, 5)
-
22706-288 PLATE, END, TUNNELPLATE, END, TUNNEL
-
38060-504 RIVETRIVET
-
40707-752 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
40707-751 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
50123-418 RIVETRIVET
-
62706-277 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
70623-072 RIVETRIVET
-
80606-983 PLUG, BODYPLUG, BODY
-
90623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101606-478 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
101606-479 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
112706-179 RETAINER, SNOWFLAP (SIDE)RETAINER, SNOWFLAP (SIDE)
-
120616-660 SNOWFLAP (SIDE)SNOWFLAP (SIDE)
-
130616-709 STRAP, SNOWFLAP (SIDE)STRAP, SNOWFLAP (SIDE)
-
148060-428 RIVETRIVET
-
150616-884 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
168017-580 SCREW, MACHINESCREW, MACHINE
-
170623-184 WASHERWASHER
-
188048-366 NUT, LOCKNUT, LOCK
-
190623-562 PLUG, HOLEPLUG, HOLE
-
202606-748 PAD, TOOLBOXPAD, TOOLBOX
-
212606-924 SEAL, SEAT, BASESEAL, SEAT, BASE
-
222706-283 PLATE, SEAT RISER (REAR)PLATE, SEAT RISER (REAR)
-
232706-278 PLATE, SEAT RISER (RIGHT)PLATE, SEAT RISER (RIGHT)
-
242706-279 PLATE, SEAT RISER (LEFT)PLATE, SEAT RISER (LEFT)
-
252606-923 SEAL, SEAT, BASESEAL, SEAT, BASE
-
262706-282 BRACKET, RISER REINFORCEMENTBRACKET, RISER REINFORCEMENT
-
278060-704 RIVETRIVET
-
282706-280 BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)
-
282706-281 BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)
-
295611-404 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
295611-405 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
