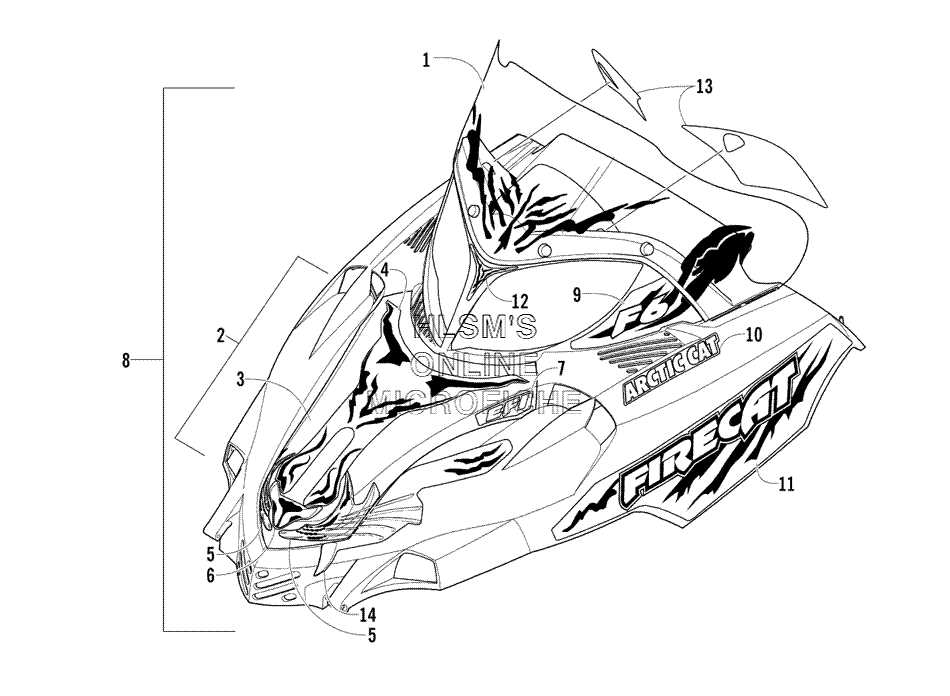

04F6D2TUSG) : HOOD AND WINDSHIELD ASSEMBLY [2/3] для Arctic Cat Firecat 600 EFI (Tiger Green) - 2004 года выпуска
-
№АртикулНазвание
-
13606-273 WINDSHIELDWINDSHIELD
-
21718-478 COVER, HOOD W/DECALSCOVER, HOOD W/DECALS
-
32706-030 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-786 DECAL, COVER - CRESTDECAL, COVER - CREST
-
55611-788 DECAL, COVER - RIGHTDECAL, COVER - RIGHT
-
55611-789 DECAL, COVER - LEFTDECAL, COVER - LEFT
-
65611-787 DECAL, COVER - FRONTDECAL, COVER - FRONT
-
75611-644 DECAL, COVER - UPPER RIGHTDECAL, COVER - UPPER RIGHT
-
75611-645 DECAL, COVER - UPPER LEFTDECAL, COVER - UPPER LEFT
-
81718-473 HOOD W/DECALSHOOD W/DECALS
-
95611-700 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
95611-701 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
105611-780 DECAL, HOOD - VENTDECAL, HOOD - VENT
-
115611-784 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
115611-785 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
125611-781 DECAL, HOOD - CENTERDECAL, HOOD - CENTER
-
135611-746 DECAL, HOOD - CONSOLE - RIGHTDECAL, HOOD - CONSOLE - RIGHT
-
135611-747 DECAL, HOOD - CONSOLE - LEFTDECAL, HOOD - CONSOLE - LEFT
-
145611-782 DECAL, HOOD - FRONT - RIGHTDECAL, HOOD - FRONT - RIGHT
-
145611-783 DECAL, HOOD - FRONT - LEFTDECAL, HOOD - FRONT - LEFT
