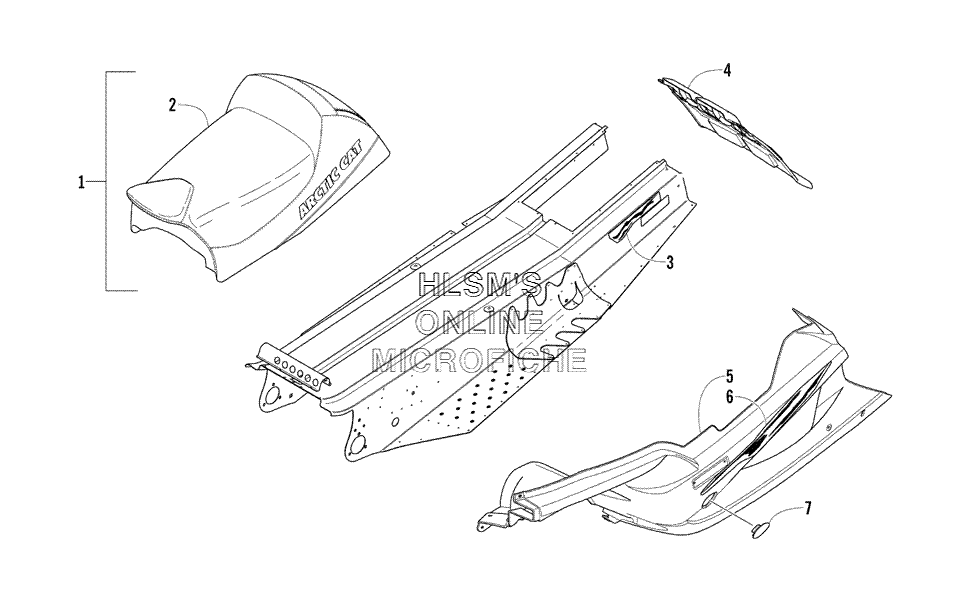

BELLY PAN- SEAT- TUNNEL- AND SNOWFLAP [1/3] для Arctic Cat Firecat 600 EFI (Tiger Green) - 2004 года выпуска
-
№АртикулНазвание
-
17997-682 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
22706-487 COVER, SEATCOVER, SEAT
-
35611-626 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
35611-627 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
43606-333 SNOWFLAP W/DECALSSNOWFLAP W/DECALS
-
52606-348 BELLY PAN - RIGHTBELLY PAN - RIGHT
-
52606-349 BELLY PAN - LEFTBELLY PAN - LEFT
-
65611-790 DECAL, BELLY PAN - RIGHTDECAL, BELLY PAN - RIGHT
-
65611-791 DECAL, BELLY PAN - LEFTDECAL, BELLY PAN - LEFT
-
72606-350 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
