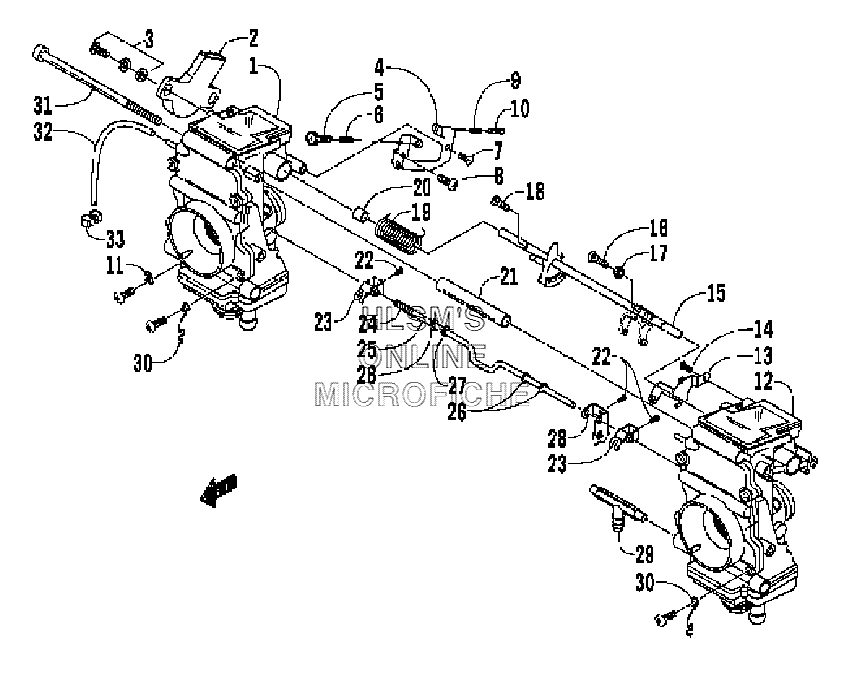

CARBURETOR - EXTERNAL PARTS для Arctic Cat Firecat 700 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
16506-367 CARBURETOR ASSEMBLY (RIGHT) (INC. 2, 11)CARBURETOR ASSEMBLY (RIGHT) (INC. 2, 11)
-
26506-311 THROTTLE POSITION SENSOR ASSEMBLYTHROTTLE POSITION SENSOR ASSEMBLY
-
36506-085 SCREW W/WASHERSSCREW W/WASHERS
-
46506-331 BRACKETBRACKET
-
56506-061 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
66506-062 SPRINGSPRING
-
76506-063 SCREWSCREW
-
86506-064 SCREWSCREW
-
96506-056 SPRINGSPRING
-
106506-134 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
116506-340 CLIP, HOSECLIP, HOSE
-
126506-368 CARBURETOR ASSEMBLY (LEFT) (INC. 13, 14)CARBURETOR ASSEMBLY (LEFT) (INC. 13, 14)
-
136506-326 BRACKETBRACKET
-
146506-075 SCREWSCREW
-
156506-343 SHAFT, THROTTLE LEVER, ASSEMBLYSHAFT, THROTTLE LEVER, ASSEMBLY
-
166506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
176506-041 RING, LEVERRING, LEVER
-
186506-046 SCREWSCREW
-
196506-330 SPRING, THROTTLESPRING, THROTTLE
-
206506-048 SPACERSPACER
-
216506-152 SPACERSPACER
-
226506-066 SCREWSCREW
-
236506-333 LEVER, STARTERLEVER, STARTER
-
246506-082 SPRINGSPRING
-
256506-372 SHAFTSHAFT
-
266506-081 WASHERWASHER
-
276506-084 E, CLIPE, CLIP
-
286506-375 LEVER, STARTERLEVER, STARTER
-
296506-127 T, FITTINGT, FITTING
-
306506-322 CLIP, HOSECLIP, HOSE
-
316506-065 BOLTBOLT
-
326506-328 HOSE (RIGHT)HOSE (RIGHT)
-
326506-327 HOSE (LEFT)HOSE (LEFT)
-
336506-332 CLAMP, HOSECLAMP, HOSE
